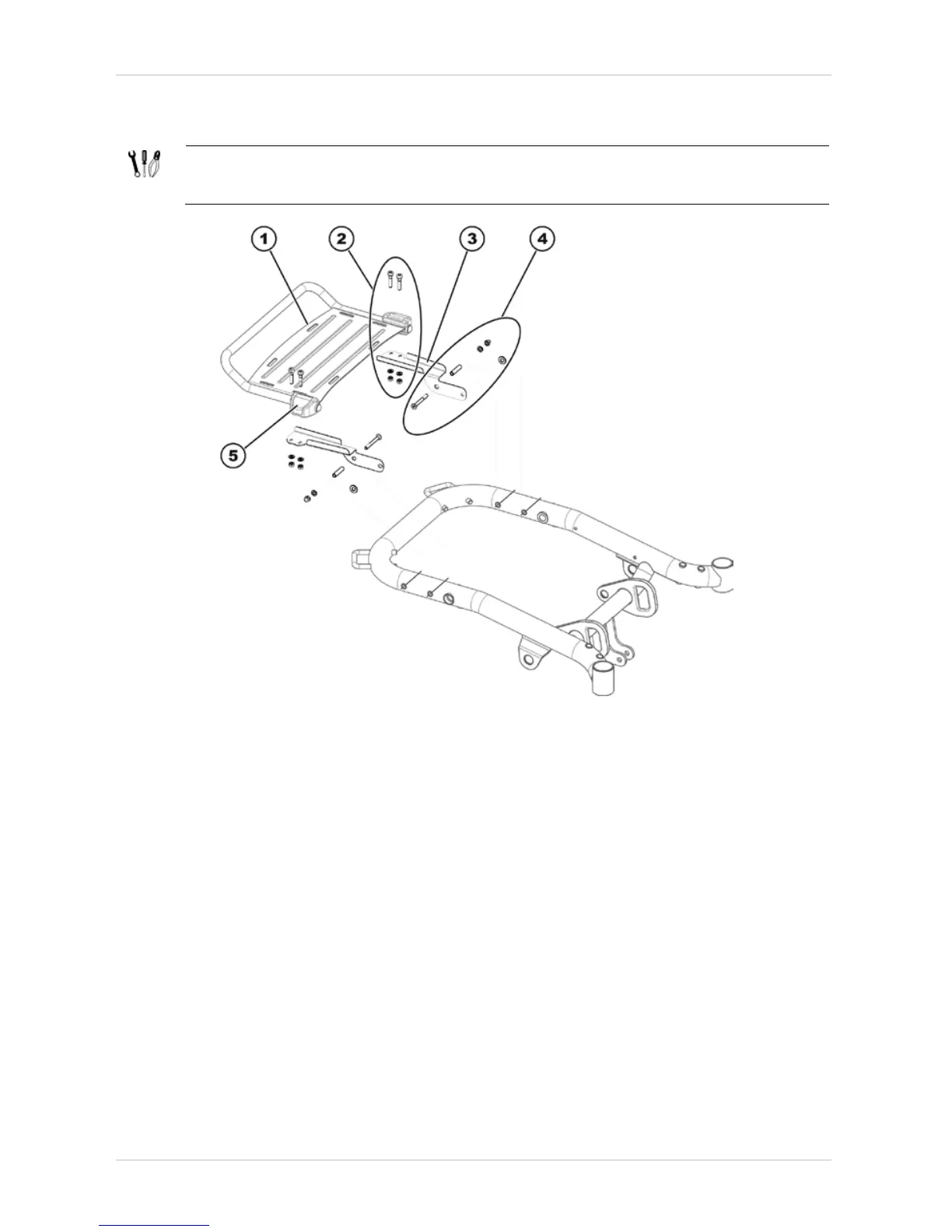

• If no conventional lighting system is installed:
Loosen and remove both hexagon socket head screws (4) together with the washer.
• If a conventional lighting system is present:
Loosen and remove both of the hexagon socket head screws (4) including the washers, spacer
sleeve, etc. Also see chapter 8.7.9.
• Install the luggage carrier fixation bracket (3).
• If a conventional lighting system is present:
Install the light bracket. Also see chapter 8.7.9.
• Install both hexagon socket head screws (4) together with the washers, spacer sleeve, etc.
• Repeat these work steps on the other side of the wheelchair.
• Open the clamping levers (5) of the luggage carrier fixation bracket.
• Push the brackets onto the luggage carrier (1).
• Install the luggage carrier with the brackets. When tightening the screws (2), make sure that
the luggage carrier is correctly centered.
