ATTENTION: Danger of crushing to the hands and feet by the weight of the wheelchair!
• Pay attention to the hand and feet.
• Use proper lifting techniques.
Danger of injury due to uncontrolled movement of the wheelchair!
• Switch the vehicle's power system off (ON-/OFF key).
• Engage the drive motors.
• Secure the vehicle against rolling away by placing wedges under the wheels.
Requirements:
• 4 mm Allen wrench
• 24 mm socket wrench
• 24 mm open-ended wrench
• Flat screwdriver
• Oblong wooden blocks, at least 14 x 14 x 30 cm
• Medium strength thread locking adhesive, for example Loctite 243
• Lift the wheelchair on one side and place a 14 cm high wooden block underneath it so that the
front wheel is off the ground and can rotate freely. Use proper lifting techniques.
• Remove the front wheel, as described in chapter 8.8.3.
Removing the splash guard:

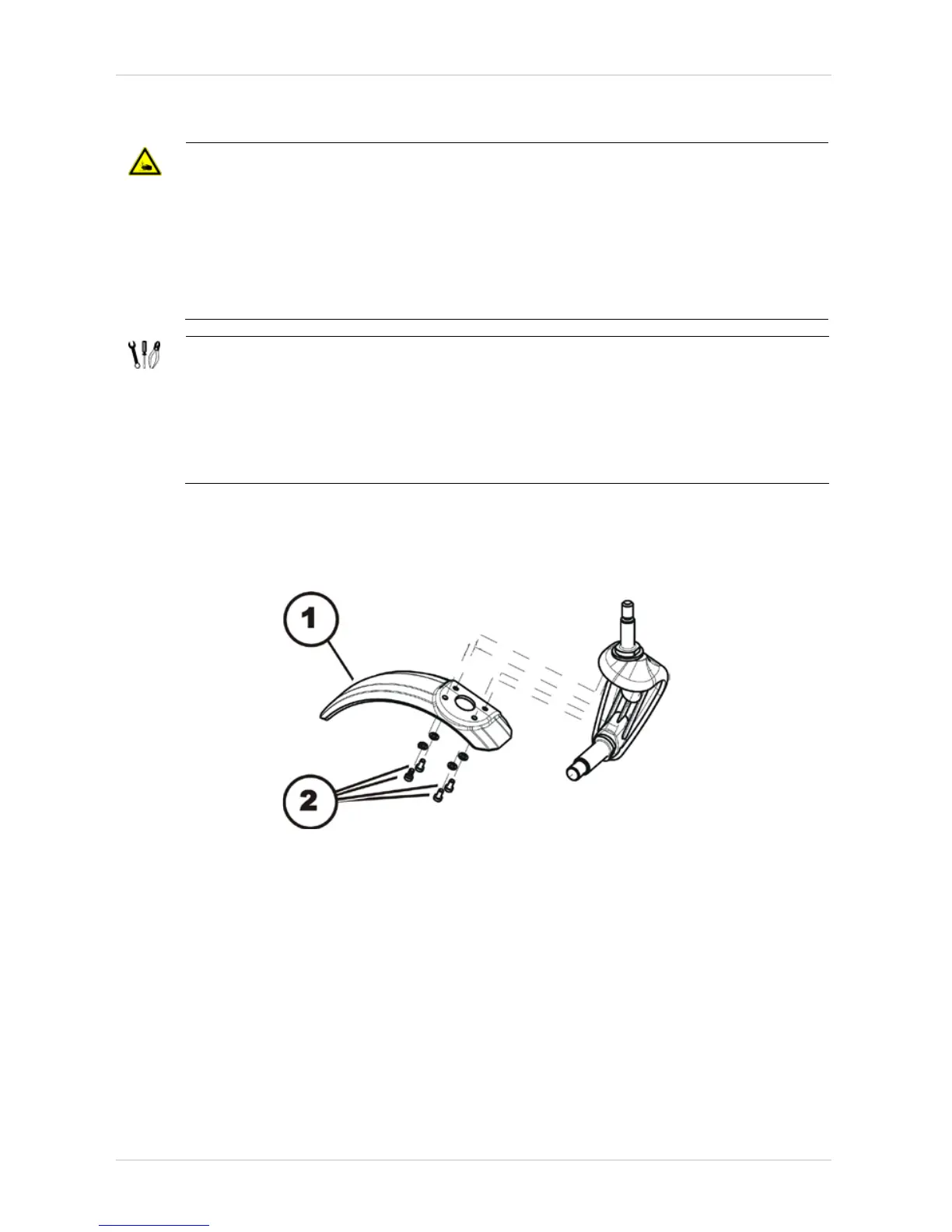

• Loosen and remove the four hexagon socket head screws (2) together with the washers.
• Replace the splash guard (1).
Installing a splash guard:
• Assemble the parts in reverse order.
