8.7.5 Replacing the head lamps completely (conventional lighting system)
Requirements:
• Phillips screwdriver size 2
• Side cutting pliers
• Cable ties
Uninstalling head lamps:
• Switch the electronics OFF on the remote.
• Remove the rear and the middle covers, as described in chapter 8.1.1 und 8.1.2.
• Take exact note of the positions of all cables and the sockets that they are connected to. Mark
the connectors and sockets or take a photograph with a digital camera.

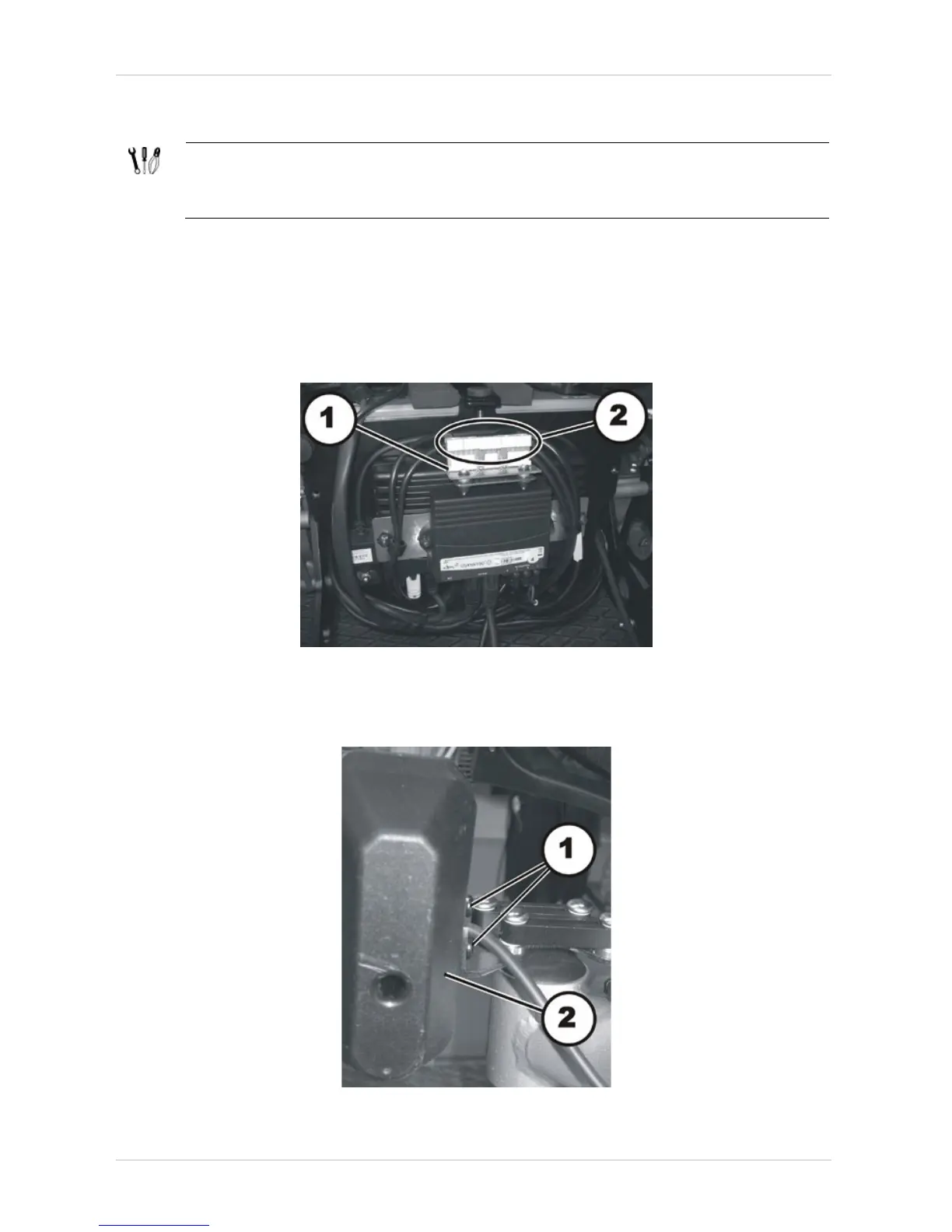

• Disconnect the plug (2) of the appropriate headlight from the lighting circuit board (1).
• Pull the headlight cable out of the wheelchair. If necessary, also remove the cable ties.
