Invacare Kite - Electronic Module Overview (ACS 2 System)

Invacare
®
- Kite
SERVICE MANUAL
17

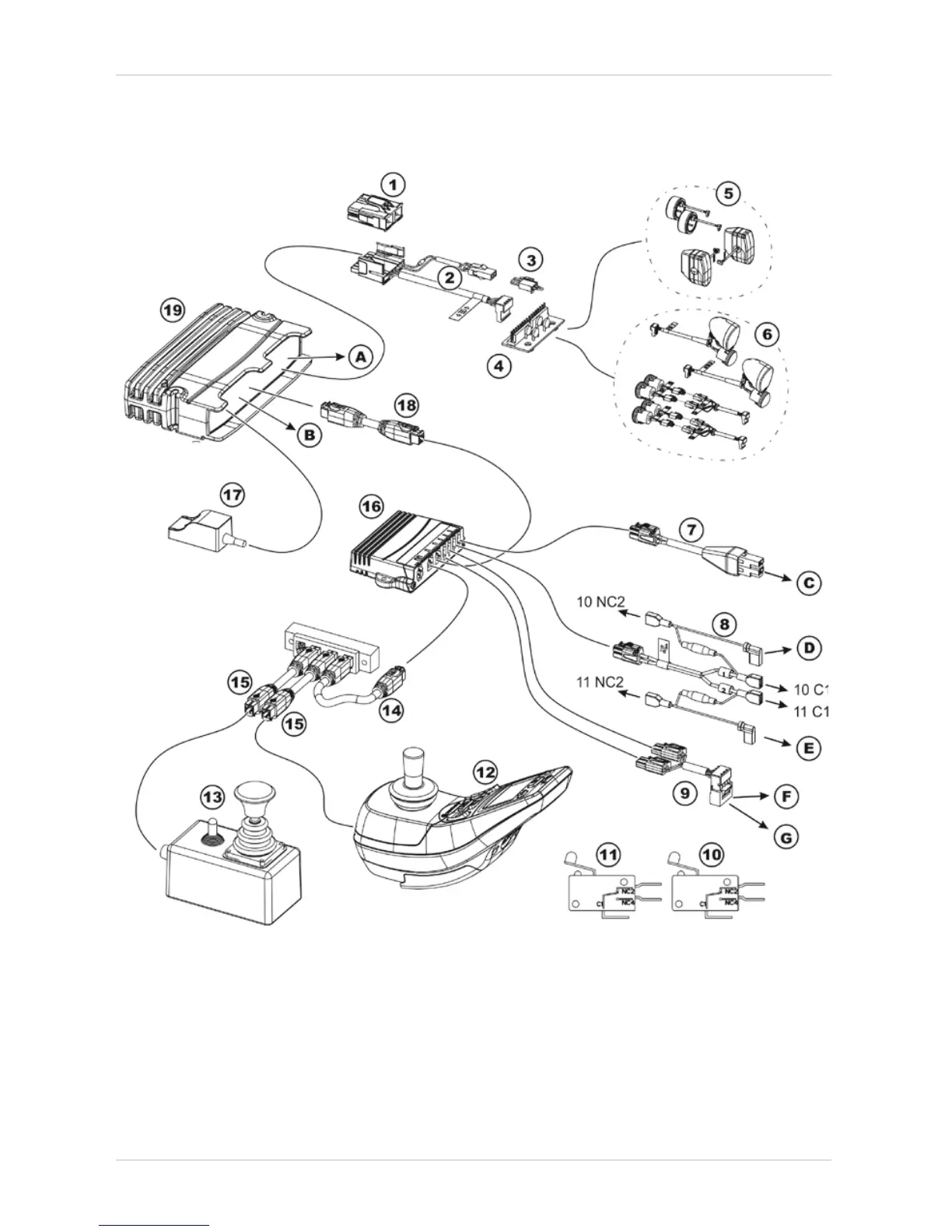

4.2 Overview of the electronic modules (ACS 2 system)
Different electronic modules can be fitted to the mobility aid.
1
2
3
4
5
6
7
8
9
Battery plug
Lighting cable
Contact bridge
Lighting circuit board
Lighting according to German
Road Traffic Act (StVZO).
LED lighting
Extension cable
Actuator cable lifter
Extension cable
10
11
12
13
14
15
16
End position switch "lower
position"
End position switch "upper
position"
Remotes
ACS attendant control,
switchable
Bus cables
Bus cables
ACT
17
18
19
A
B
C
D
E
F
G
G-Trac sensor
Bus cables
Power module
To the motor M1
To the motor M2
To the tilt actuator
To the lifter actuator
To the lifter actuator
Actuator left legrest
Actuator right legrest
