8.7.9 Replacing the tail light bracket (conventional lighting system)
Requirements:
• Phillips screwdriver size 2
• 8 mm socket wrench
• 4 mm Allen wrench
• 5 mm Allen wrench
Uninstalling the tail light bracket:
• Remove the complete tail light, as described in chapter 8.7.8.
• Loosen the screw on the seat frame that goes through the drill hole of the light bracket, using a
5 mm Allen wrench.

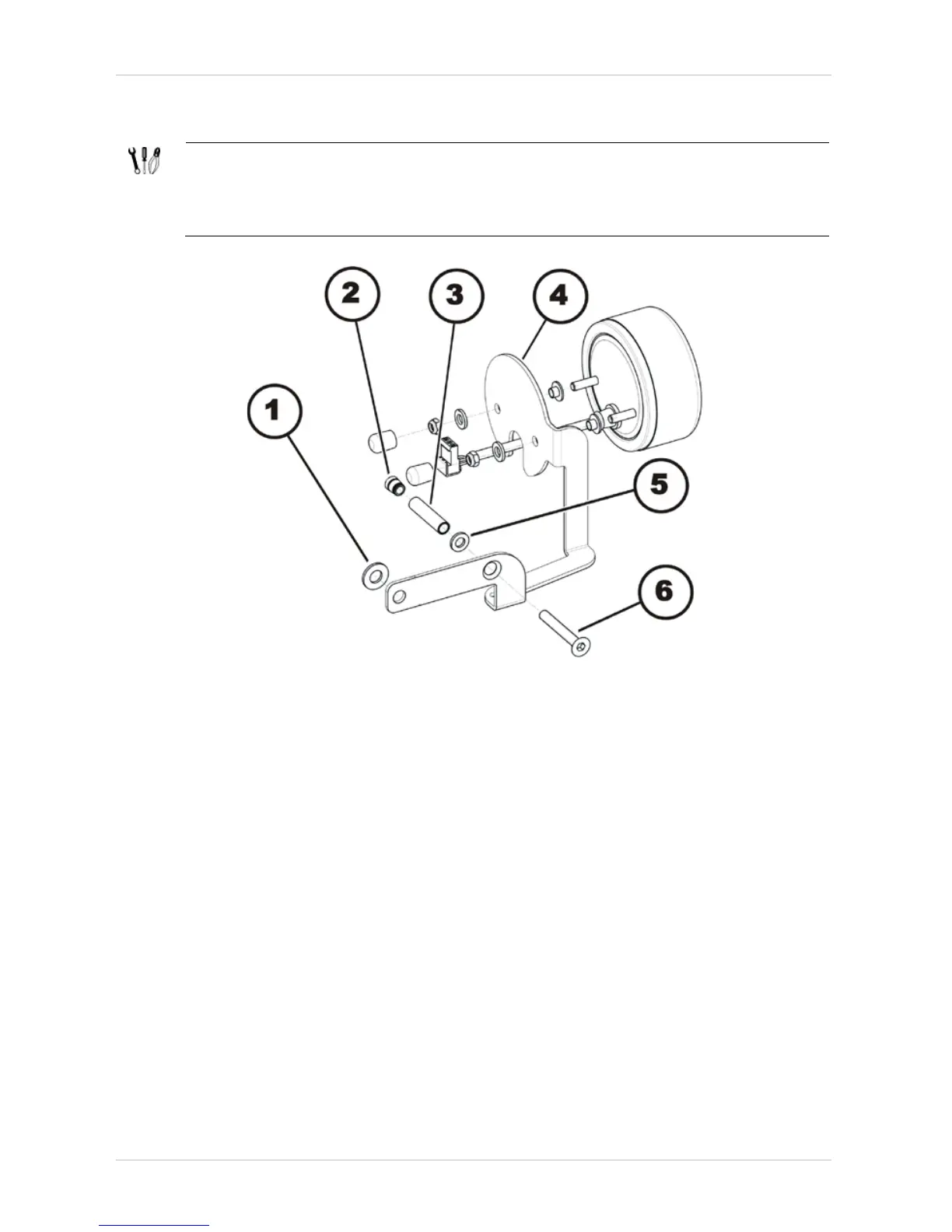

• Remove the hexagon socket head screw. Pay attention to the distance washer (1).
• Use a 4 mm Allen wrench to loosen the hexagon socket head screw (6).
• Remove the hexagon socket head screw. Pay attention to the distance washer (5) and the
distance tube (3).
• Replace the lamp bracket (4).
Installing the headlight bracket:
• Assemble all parts again in reverse order.
• Check all vehicle functions.
