8.1.4 Front cover
Requirements:
• 4 mm Allen wrench
• 5 mm Allen wrench
• 10 mm Allen wrench
• 11 mm socket wrench
• 13 mm socket wrench
• 13 mm open-ended wrench
• 19 mm open-ended wrench
• 36 mm open-ended wrench
• 24 mm box wrench
• torque wrench 20 – 200 Nm
• wooden blocks
Removing the front cover:
• Disassemble the double bearing of the Dual Swing Technology (D.S.T.), as described in
chapter 8.13.
• Use a 4 mm Allen wrench to loosen both hexagon socket head screws.
• Remove both hexagon socket head screws, including the washers.

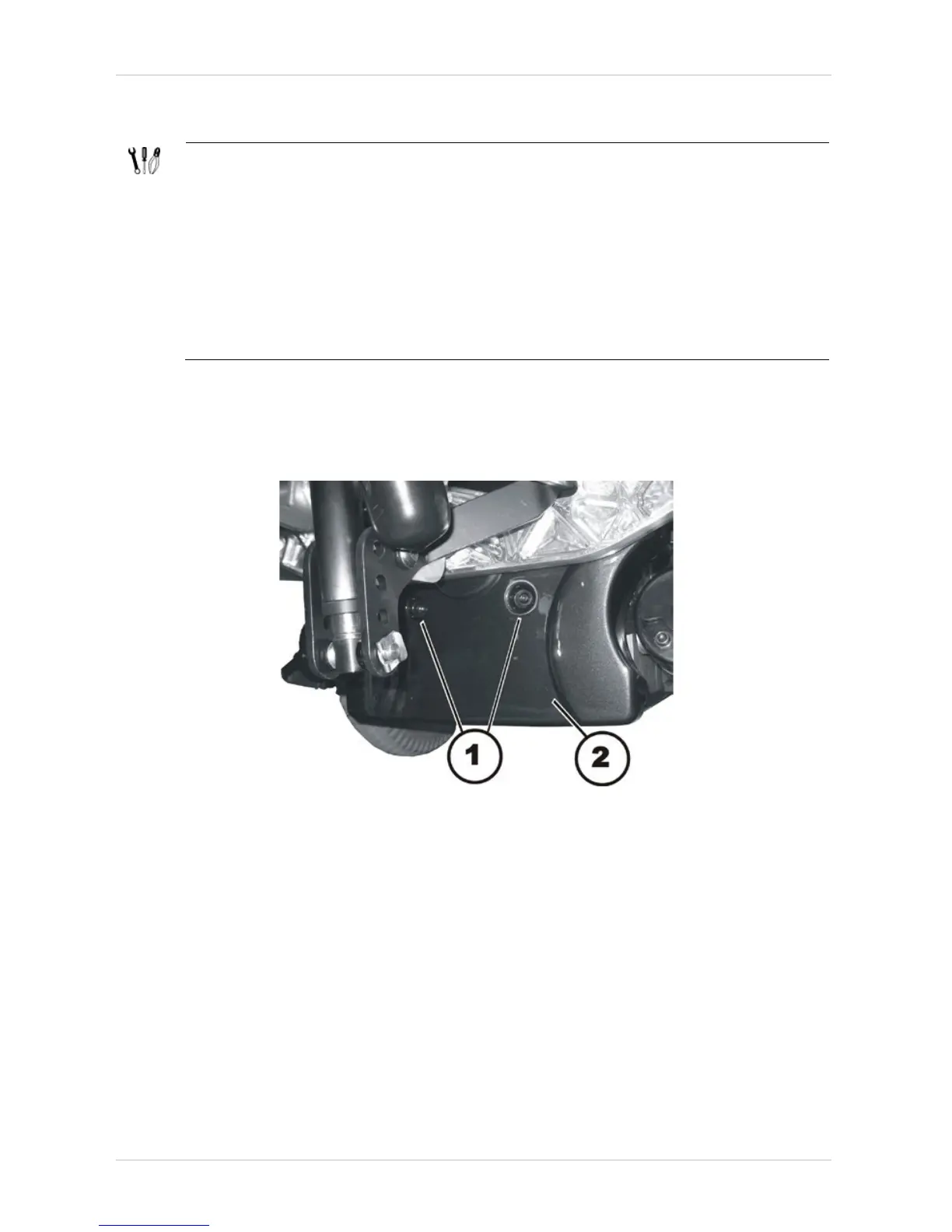

• Remove the cover (2) towards the front.
• Replace the cover.
Installing the front cover:
• Assemble the parts in reverse order.
