Invacare Kite - Flex2 Seat

SERVICE MANUAL
Invacare
®
- Kite
138

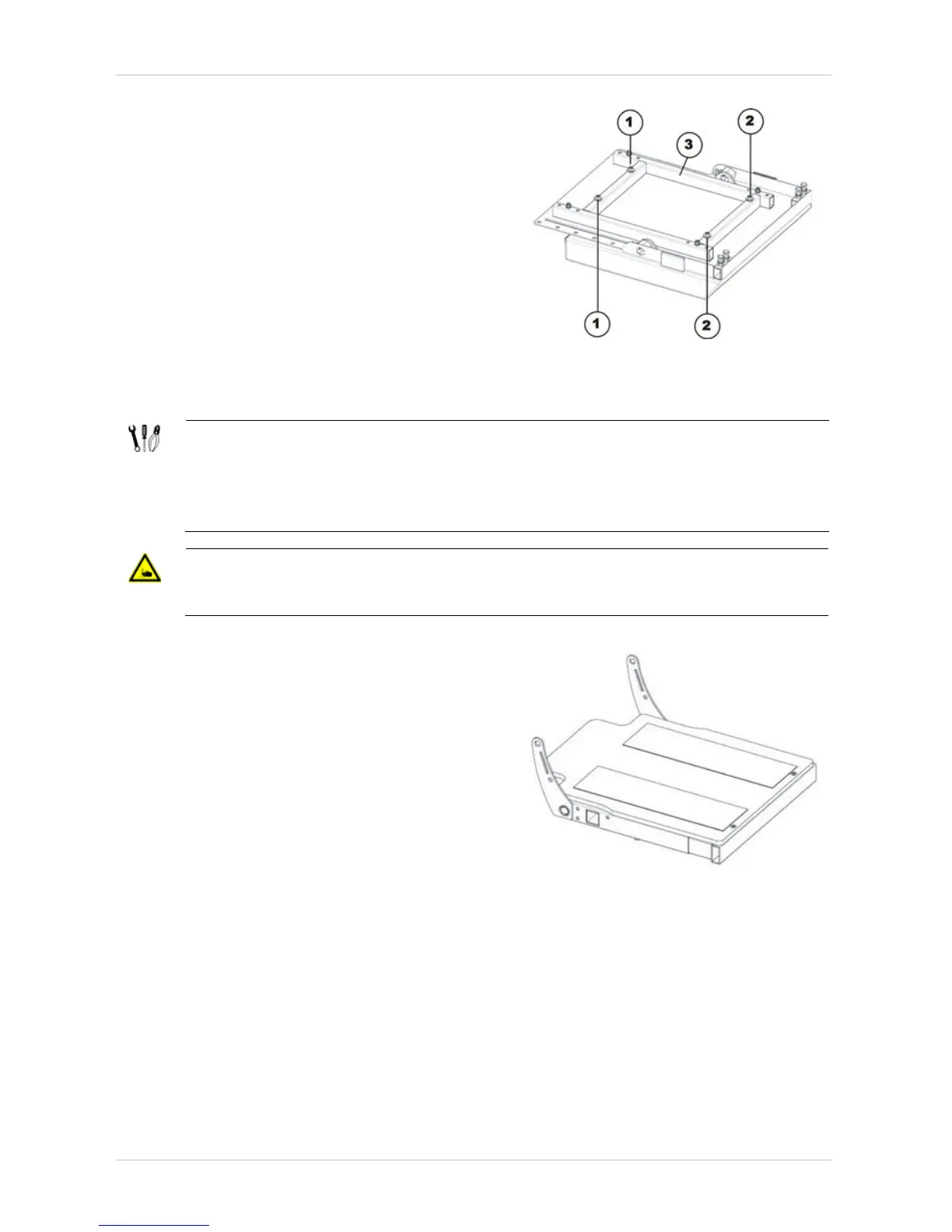

The picture shows where the drillholes for fixing
the seat frame (3) are located on the base frame.
• Rear drillholes (1)
• Front bolts (2)
• The seat frame can only be fixed in one
position on the base frame.
10.3.2 Flex2 seat
Requirements:
• 4 mm Allen wrench
• 5 mm Allen wrench
• 13 mm open-ended wrench
• Flat screwdriver
• Smal hammer
ATTENTION: Danger of crushing!
The seat is very heavy. Danger of injury to hands and feet!
• Use proper lifting techniques.
The illustration shows the Flex2 seat from above
without seat covering.
