4 Layout of components and componentry
4.1 Overview

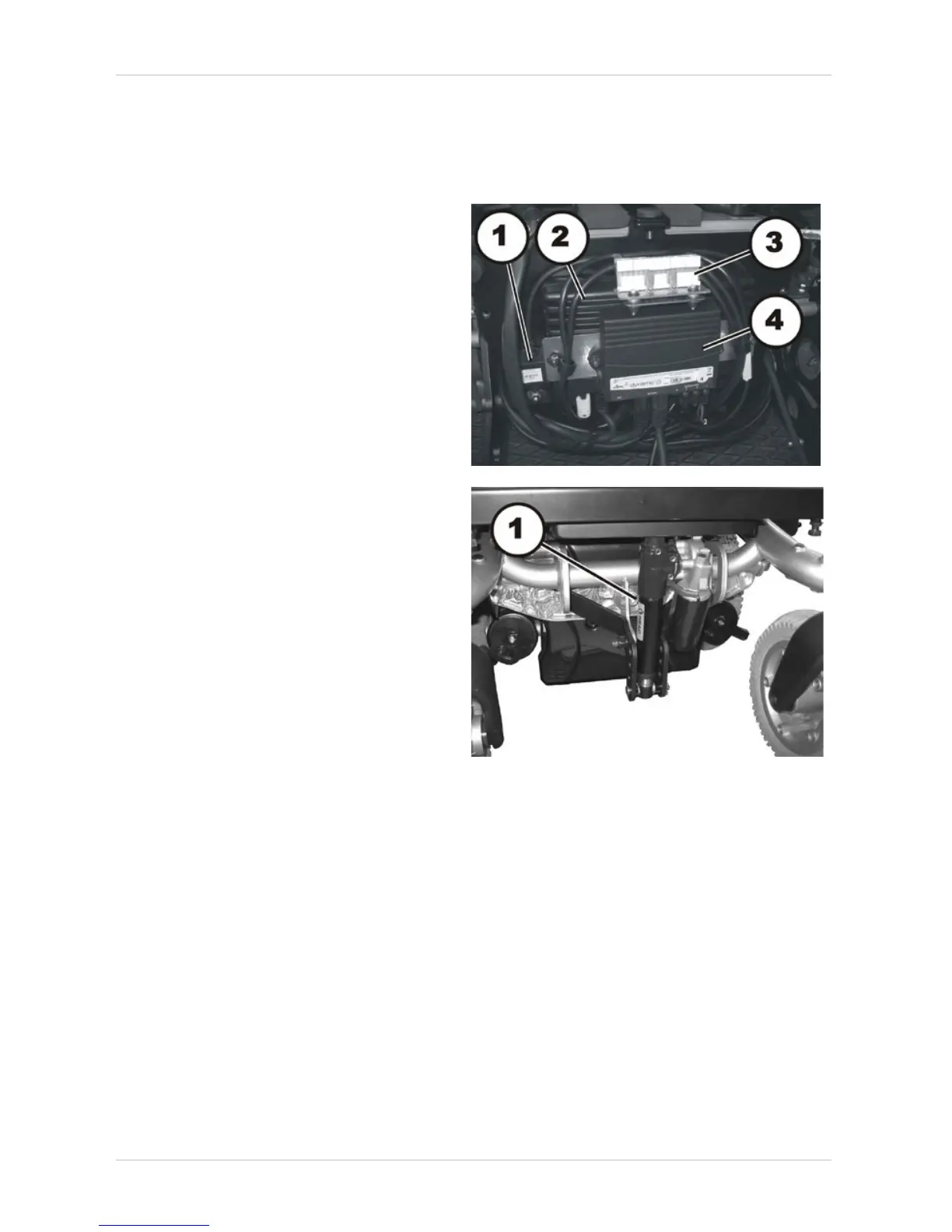

Under the rear cover:
1) G-Trac sensor
2) Power module
3) Lighting PCB
4) Actuator module
The electronic modules used are
described in Chapter 4.2.
Electric seat tilting:
1) Actuator motor
