Invacare Kite - 20° Adjusting the Seat Angle Flex2 Seat or Modulite Seat

Invacare
®
- Kite
SERVICE MANUAL
131

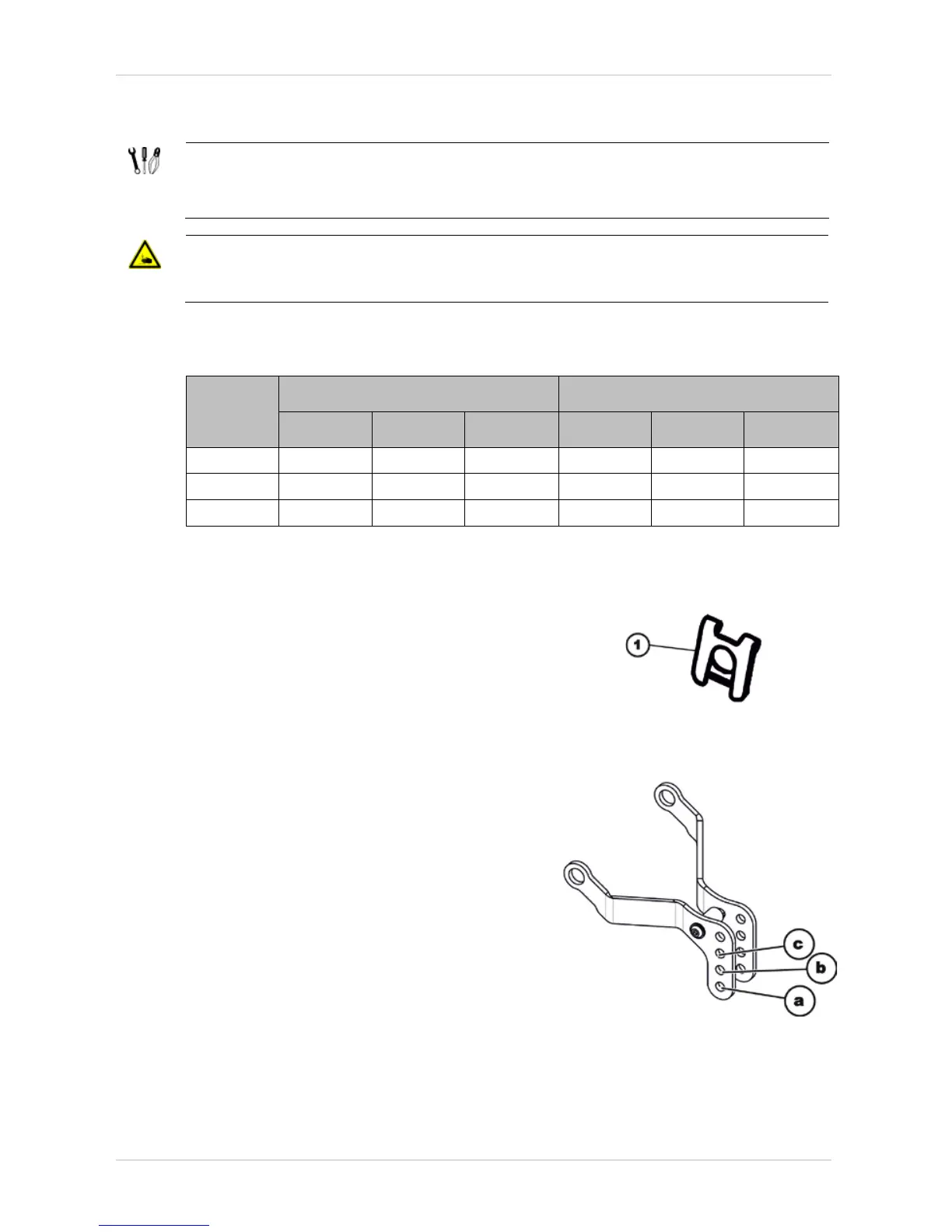

10.2.2 20° Adjusting the seat angle Flex2 seat or Modulite seat
Requirements:
• 5 mm Allen wrench
• Screwdriver, flat, width approx. 6 mm
• Small hammer
ATTENTION: Danger of crushing!
The seat is very heavy. Danger of injury to hands and feet!
• Use proper lifting techniques.
Overview of the fixation points, depending on desired seat height:
Seat
height
in cm
20° tilt with Flex2 seat Actuator holder
B C D b c d
46 X X
48 X X
50 X X
Adjusting the actuator holder on the chassis
Detailed instructions on the actuator can be found in
chapter 8.15.1.
• Use the screwdriver to remove the SL-retainer (1)
of the lower holding bolt.
• Place a support under the seat.
• Pull the holding bolt.
• Adjust the actuator with holding bolt to the desired
height, according to the above table.
• Secure the holding bolt with the SL-retainer.
