8.15.3 Replacing the lifter / tilt module
ATTENTION: Danger of crushing!
The seat/seat support is very heavy. Danger of injury to hands and feet!
• Use proper lifting techniques
Requirements:
• 5 mm Allen key
• 6 mm Allen key
• 6 mm wrench
• Side cutting pliers
Note
Take careful note of the exact position of the seat. Mark the position it is mounted in, the angle
and so on. If necessary, make photographs with a digital camera.
Any modification of the adjustment of the seat affects the centre of gravity of the wheelchair.
Uninstalling the lifter / tilt module:
• If possible, raise the lifter to the highest position.
• If possible, tip the wheelchair with the tilt module as far backwards as it will go.
• Switch the electronic control system off.

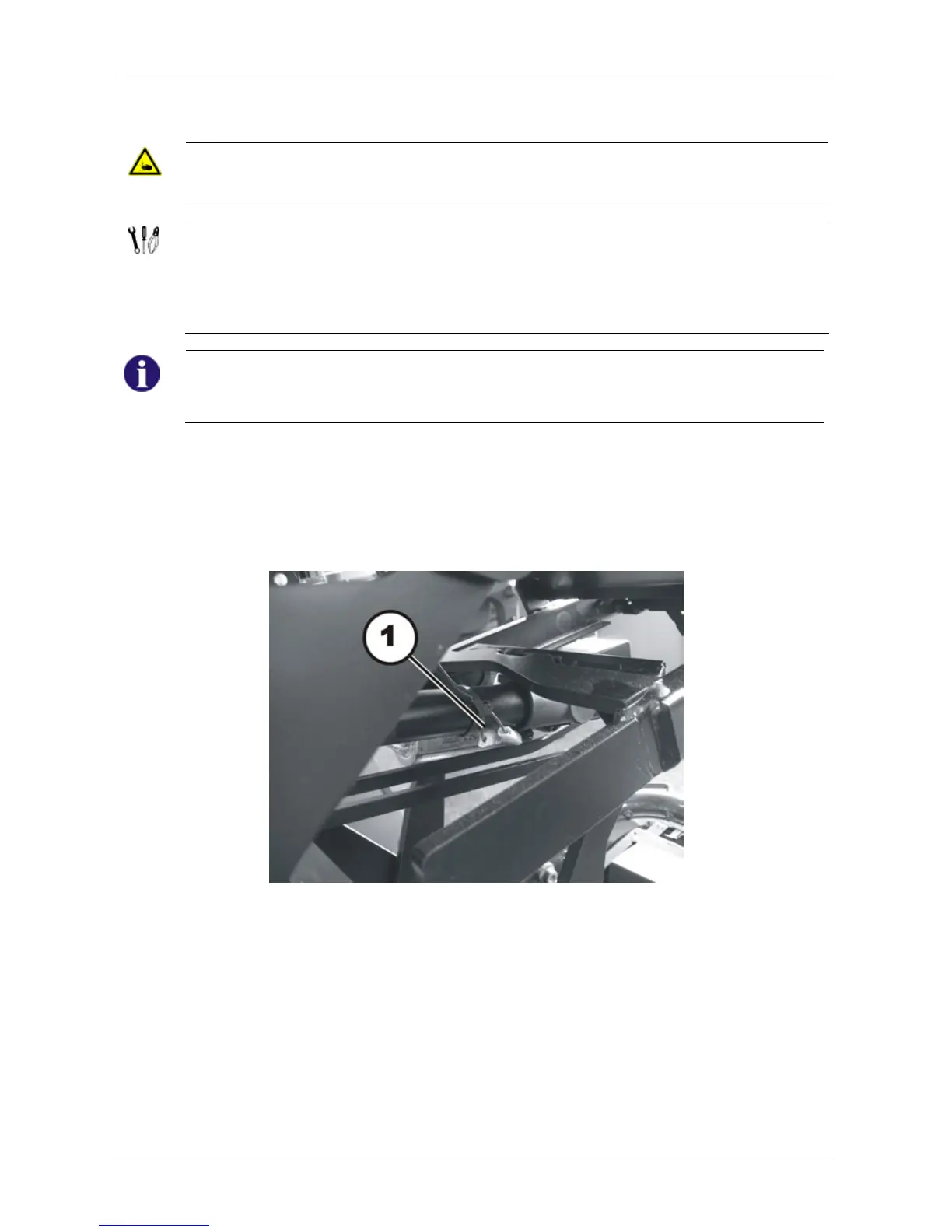

• Disconnect the plug at the height of the tilt actuator (1).
