• Open the power supply chain of the lifter:
- Flip the cover (1) up.
- Pull the flap (2) out of the cover.
- Repeat this procedure link by link.
• Remove both cable ties that secure the cable at the ends of the power supply chain.
• Pull the cable out of the power supply chain.

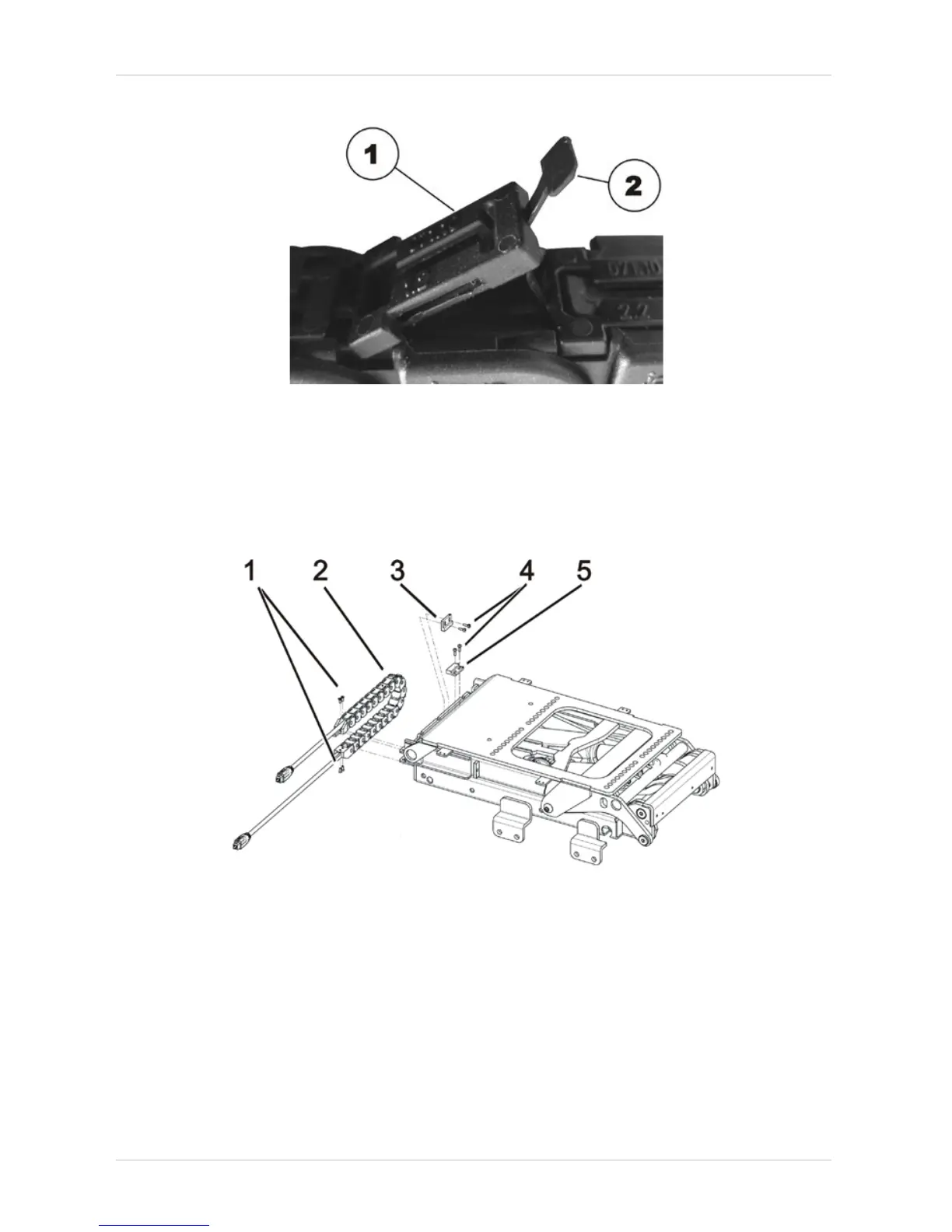

• Use the Phillips screwdriver to loosen the screws (1).
• Remove the power supply chain (2).
• Use the Phillips screwdriver to loosen the screws (4).
• Additionally the sensor (5) is secured with nuts.
Loosen the nuts while holding a 6 mm wrench against.
• Remove the magnet (3).
• Remove the sensor (5).
