8.1.6 Replacing the splash guard
Requirements:
• 6 mm Allen key
Note
Different splash guards have to be fitted depending on the depth of the seat, the width of the seat
and the seat support plates used.

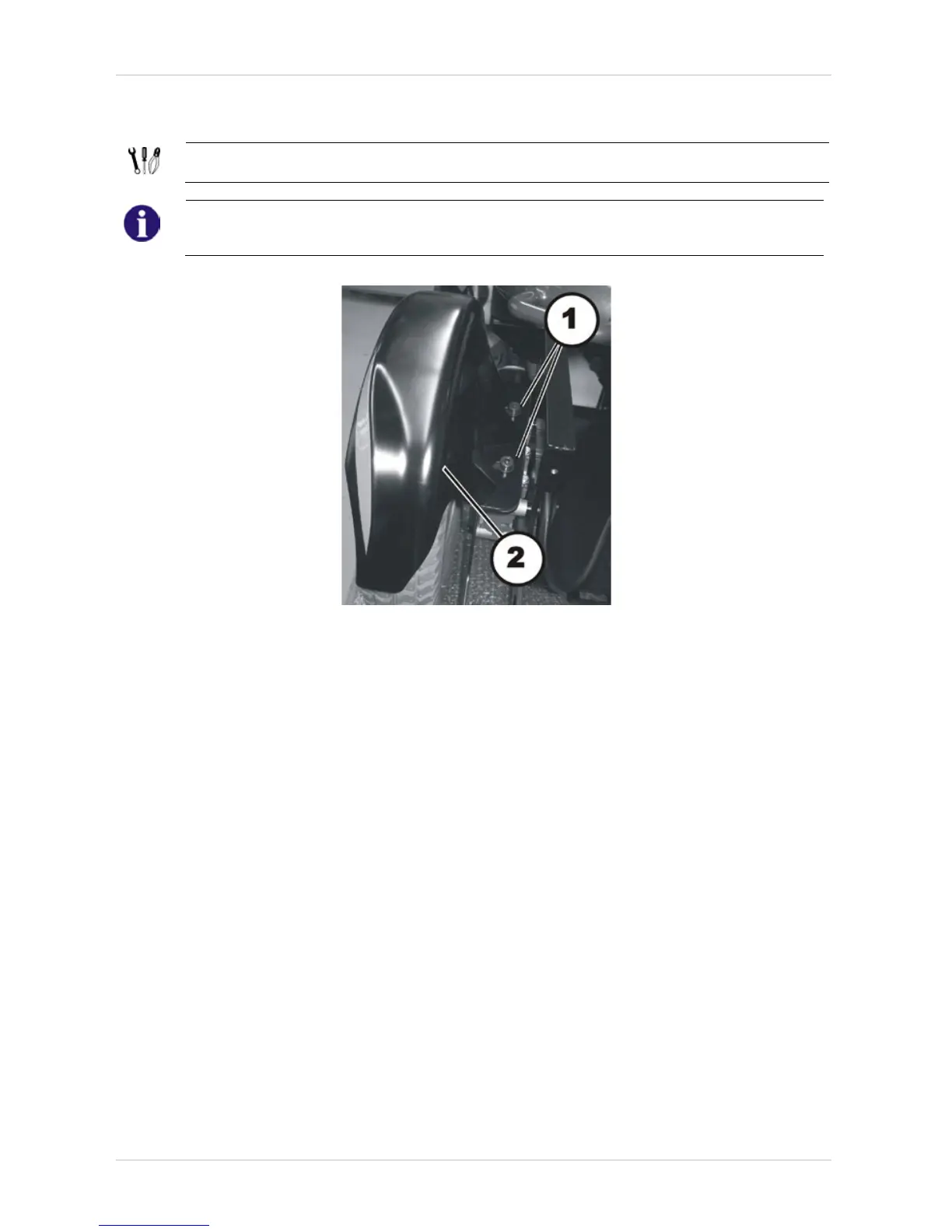

Removing the splash guard:
• Loosen and remove the two Allen screws (2) incl. the washers.
• Remove the splash guard (1) from the transmission mounting. (3)
• Replace the splash guard.
Refitting the splash guard:
• Refit the parts in reverse order.
