8.19 Adjusting the seat width/ backrest width (Modulite)
8.19.1 Adjusting the seat width
You can only adjust the seat width for the adjustable seat plate or for the adjustable sling seat.
The sling seat is available in two widths:
- for a seat width of 38-43 cm and
- for a seat width of 48-53 cm.
When modifying the seat width, the backrest width must also be correspondingly adapted. See
chapter 8.19.2.
Requirements:
• 3 mm Allen key
• 5 mm Allen key
• 13 mm open-ended spanner
• T25 Torx wrench
• T40 Torx wrench
• Remove the backrest cushion.
• Remove the backrest from the backrest
mounting bracket.
See chapter 8.18.

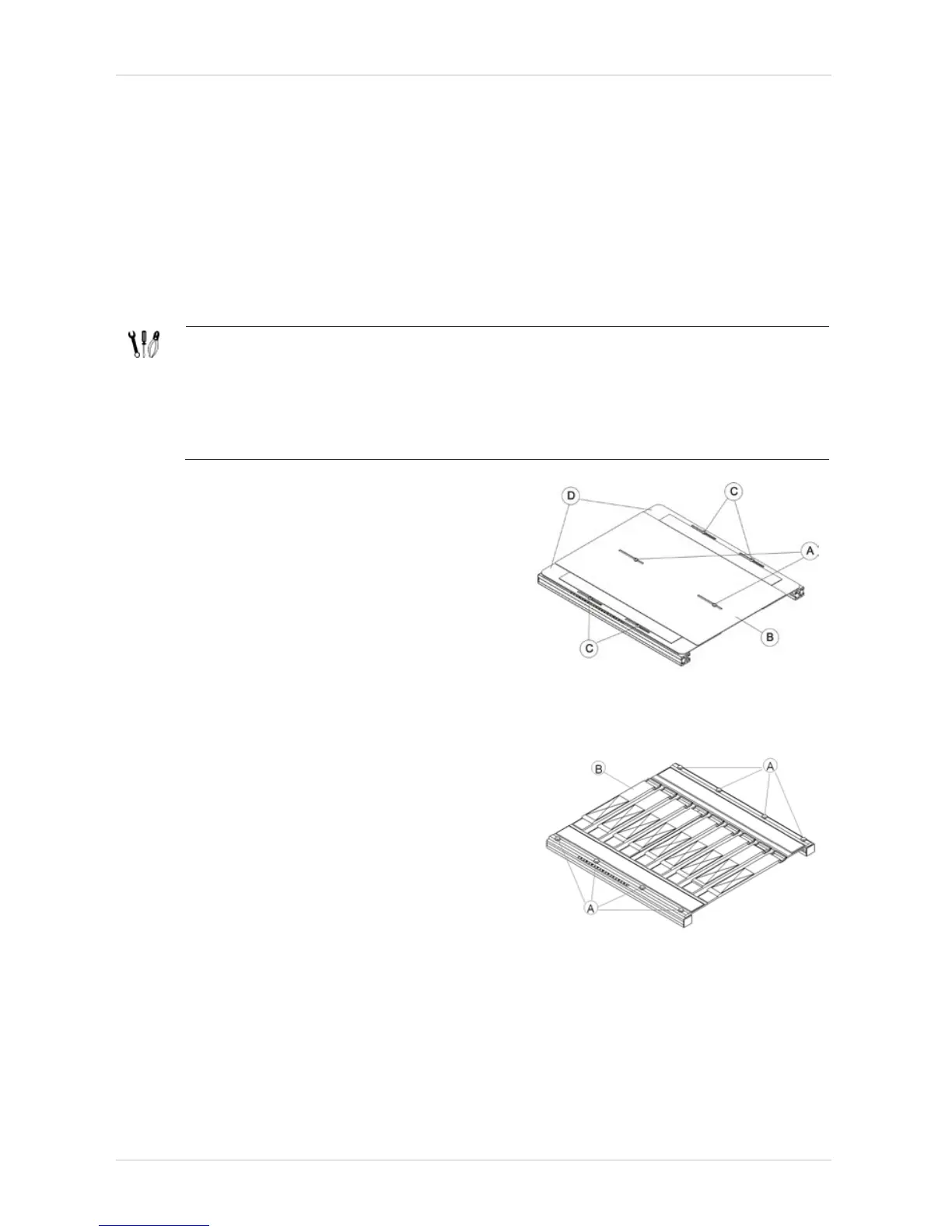

• Loosen and remove the screws, which secure
the middle seat plate (A) with a 3 mm Allen key.
• Remove the middle seat plate (B).
• Loosen and remove the screws on both sides,
which secure the lateral seat plates (C) with a
3 mm Allen key.
• Remove the lateral seat plates (D).
or
• Remove the seat cushion.
• Loosen and remove the screws on both sides,
which secure the sling seat (A) with a
T25 Torx wrench.
• Remove the sling seat (B).
