8.15 Seat system
8.15.1 Replacing the tilt actuator
Requirements:
• flat screwdriver, blade width approx. 6 mm
• oblique pliers
• small hammer
• cable binder
• Remove the legrests.
• Switch the electronics OFF on the remote.
• Remove the rear and the middle covers, as described in chapter 8.1.1 und 8.1.2.
• Take exact note of the positions of all cables and the sockets that they are connected to. Mark
the connectors and sockets or take a photograph with a digital camera.

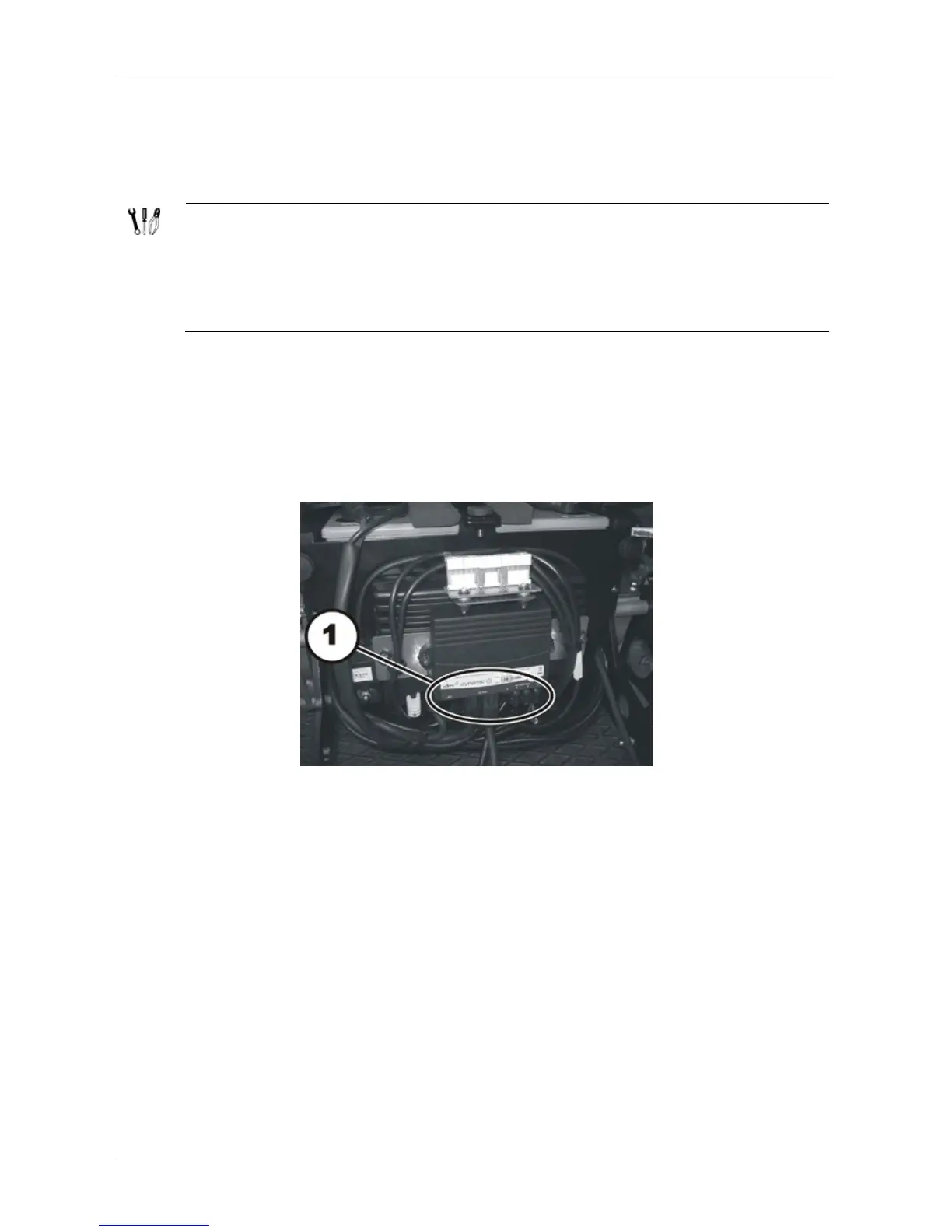

• Disconnect the plug (1) of the actuator to be tested from the actuator module.
• Pull the actuator cable out of the wheelchair. If necessary, also remove the cable ties.
