Removing the middle cover:
• Remove the rear cover, as described in chapter 8.1.1.

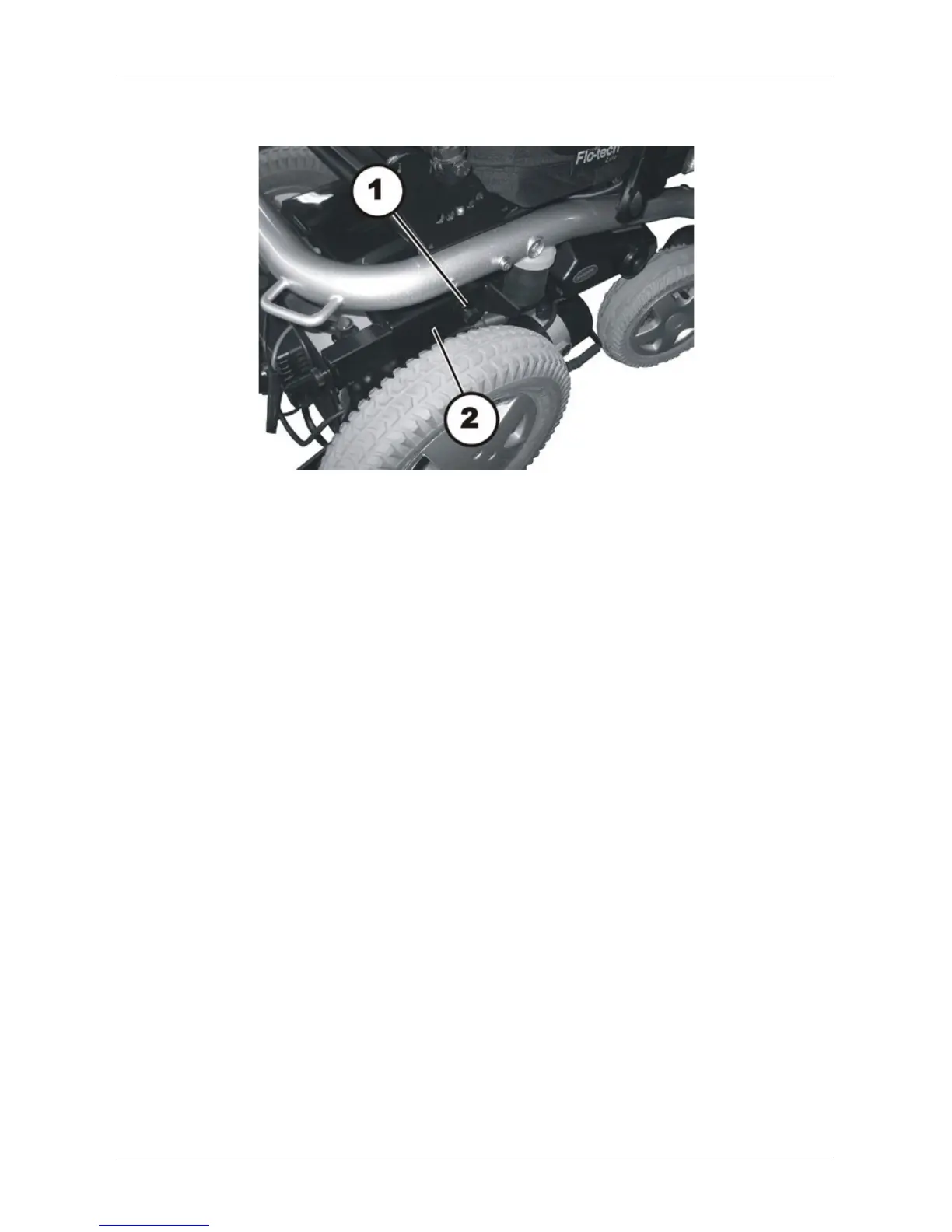

• Loosen the two thumbscrews (1) on the left and right sides of the wheelchair.
• Pull the cover towards the rear and out of the wheelchair.
Assembling the middle cover:
• Push the cover into the wheelchair from the rear.
• Make sure that the cables that run from the battery box to the seat are lying in the recesses
provided on the front edge of the cover.
• Tighten both thumbscrews hand-tight.
