Invacare Kite - Installation on the Backrest Mounting Bracket (Adjustable Seat)

SERVICE MANUAL
Invacare
®
- Kite
118
9.2.2 Installation on the backrest mounting bracket (adjustable seat)
Requirements:
• 5 mm Allen key

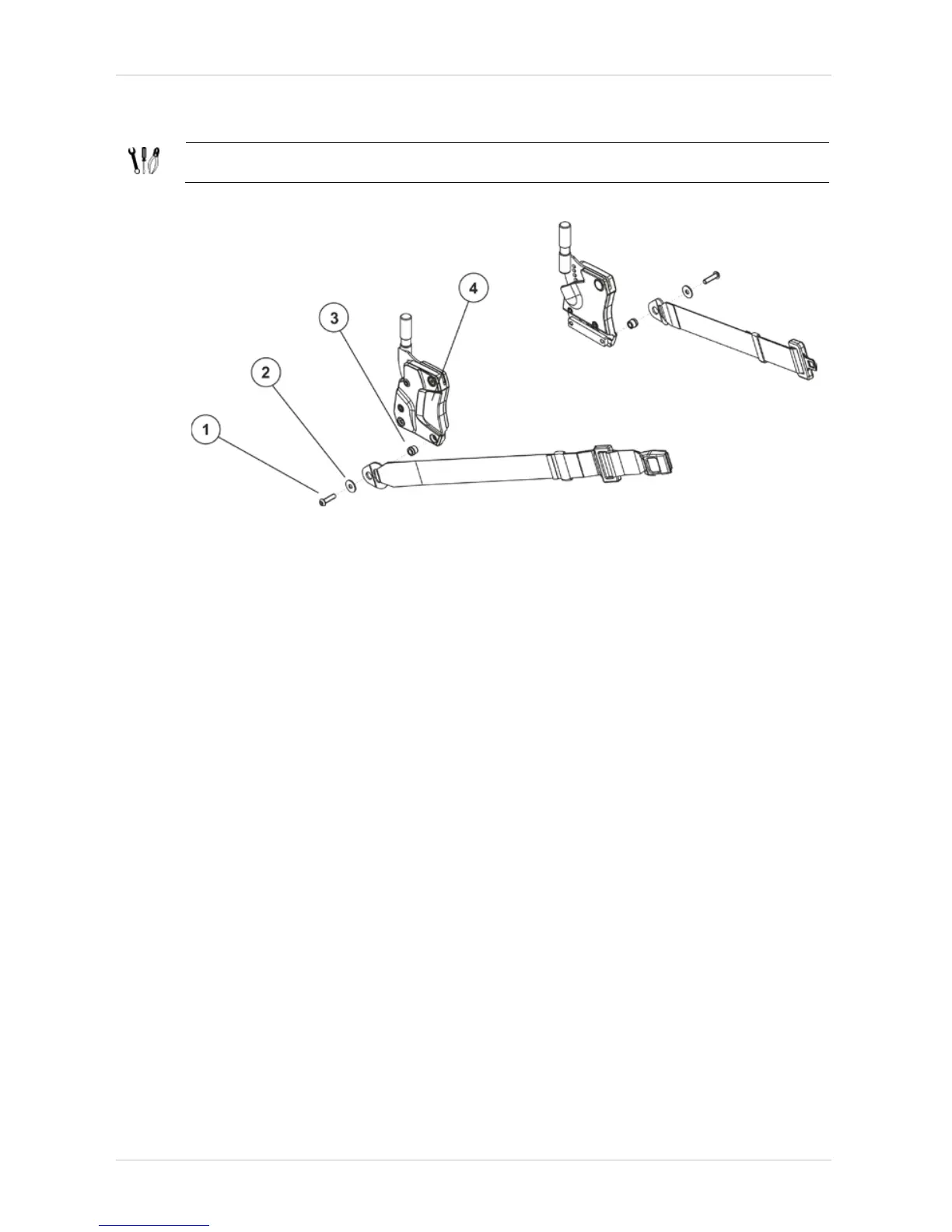

• Loosen the screw (1) with a 5 mm Allen key.
• Remove the screw (1), the corresponding washer (2) and the seat belt and belt winder (3) from
the backrest mounting bracket (4).
• Replace the safety belt.
• Refit the parts in the reverse order.
