9 Installing accessories
9.1 Replacing the holding strap
Requirements:
• open-ended spanner, 13 mm
• 5 mm Allen key
Note

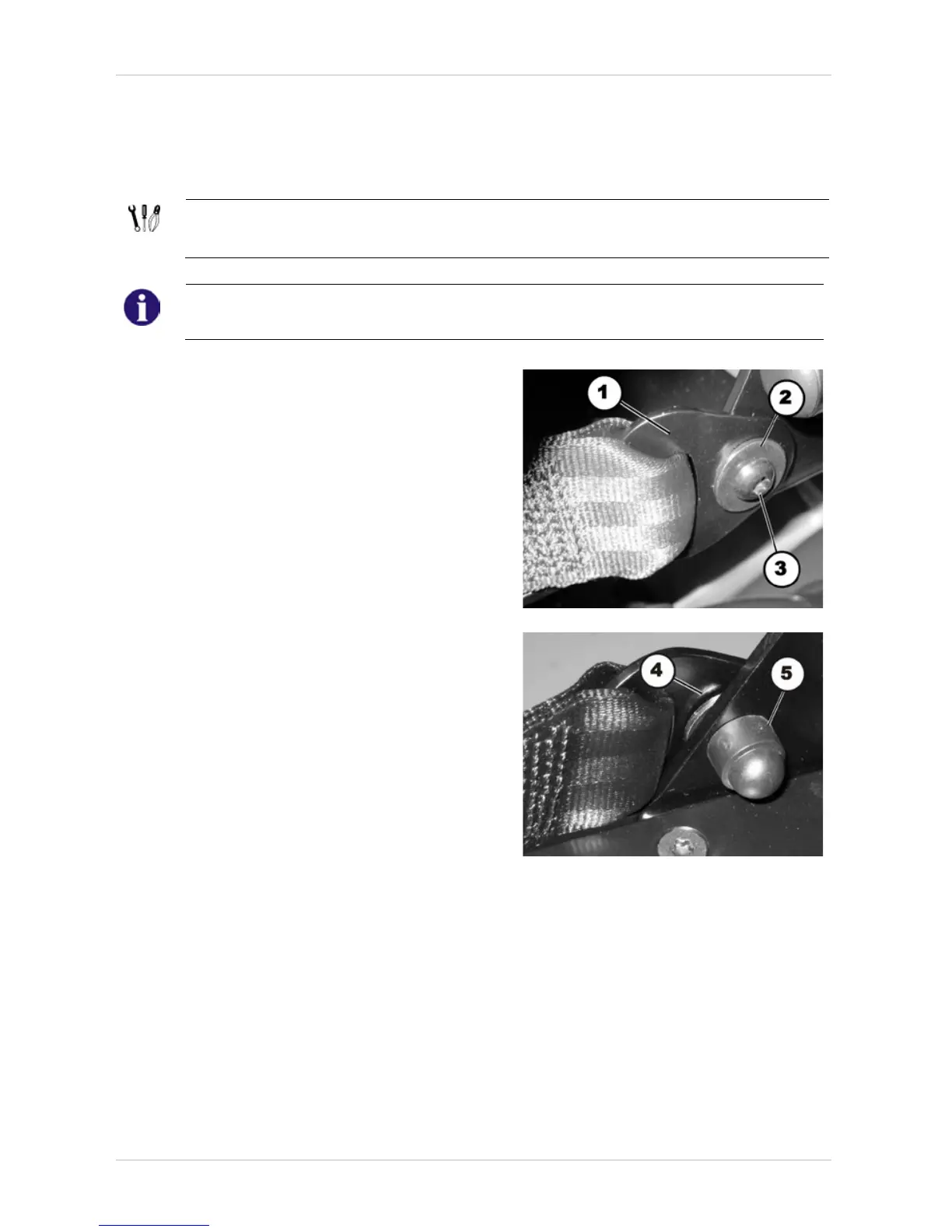

A nut is fixed between the two washers (2) and (4) as a spacer so that the belt mounting can
rotate freely.
• Remove the plastic cap (5).
• Loosen the bolt (3) and the associated nut
(in the figure this is covered by the plastic
cap) with a 5 mm Allen key and a 13 mm
socket spanner.
• Remove the nut.
• Remove the bolt including safety belt and flat
washers (2) and (4).
• Remove the flat washers (4).
• Replace the safety belt (1).
• Refit the parts in the reverse order.
