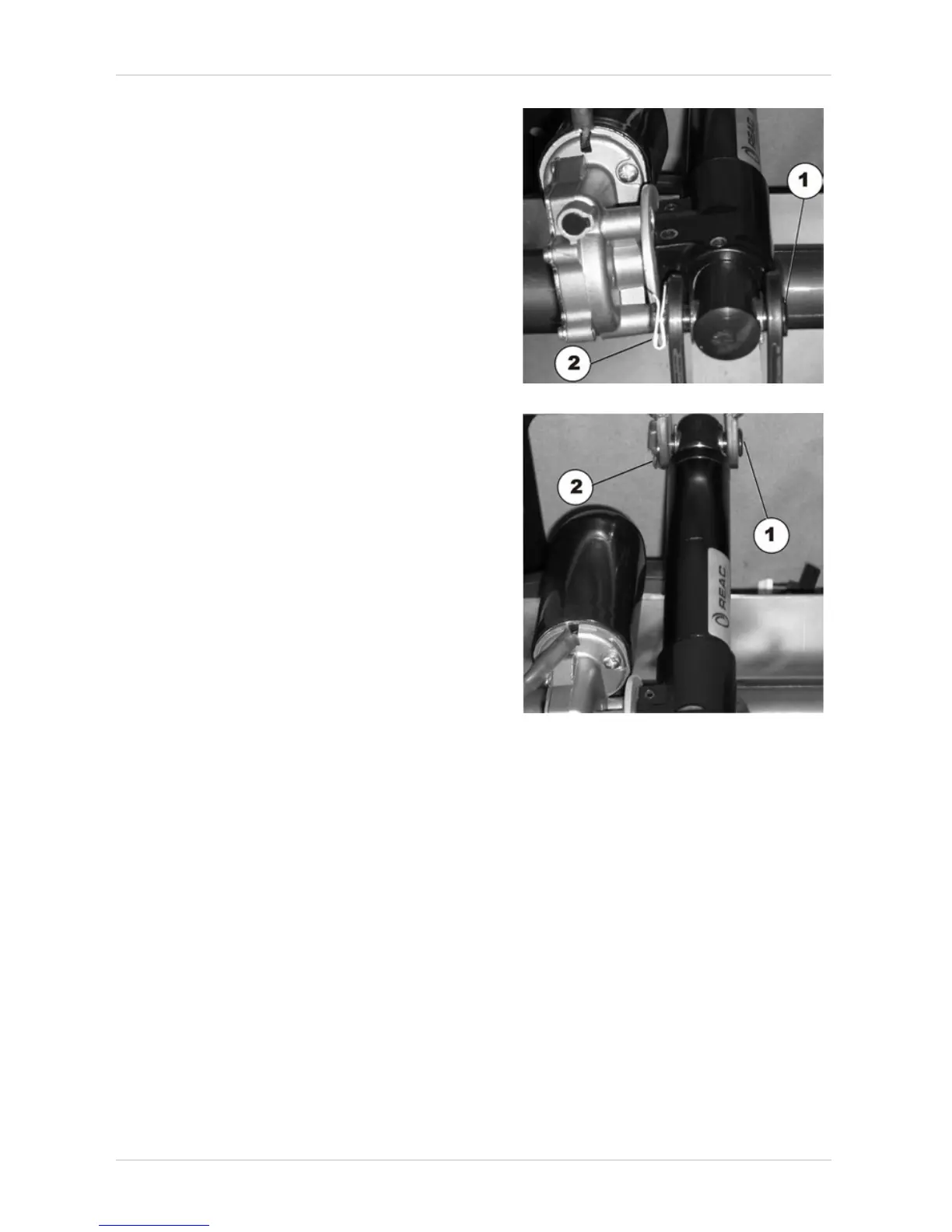

• Remove the SL fuse (2) on the bottom fixing
bolt (1) with the screwdriver.
• Pull the fixing bolt (1) out.
• Remove the SL fuse (2) on the top fixing bolt
(1) with the screwdriver.
• Pull the fixing bolt (1) out.
• Pull the adjustment spindle out together with the actuator.
• Insert the new adjustment spindle with the actuator.
• Reinsert the fixing bolts and SL fuses. Fix the SL fuses securely to the fixing bolt with the
hammer.
• Connect the plug of the actuator to the electronic module.
• Fasten the actuator cable to the frame with new cable ties. Position the cable such that it
does not get abraded or pinched.
• To complete, check all seat tilting functions.
