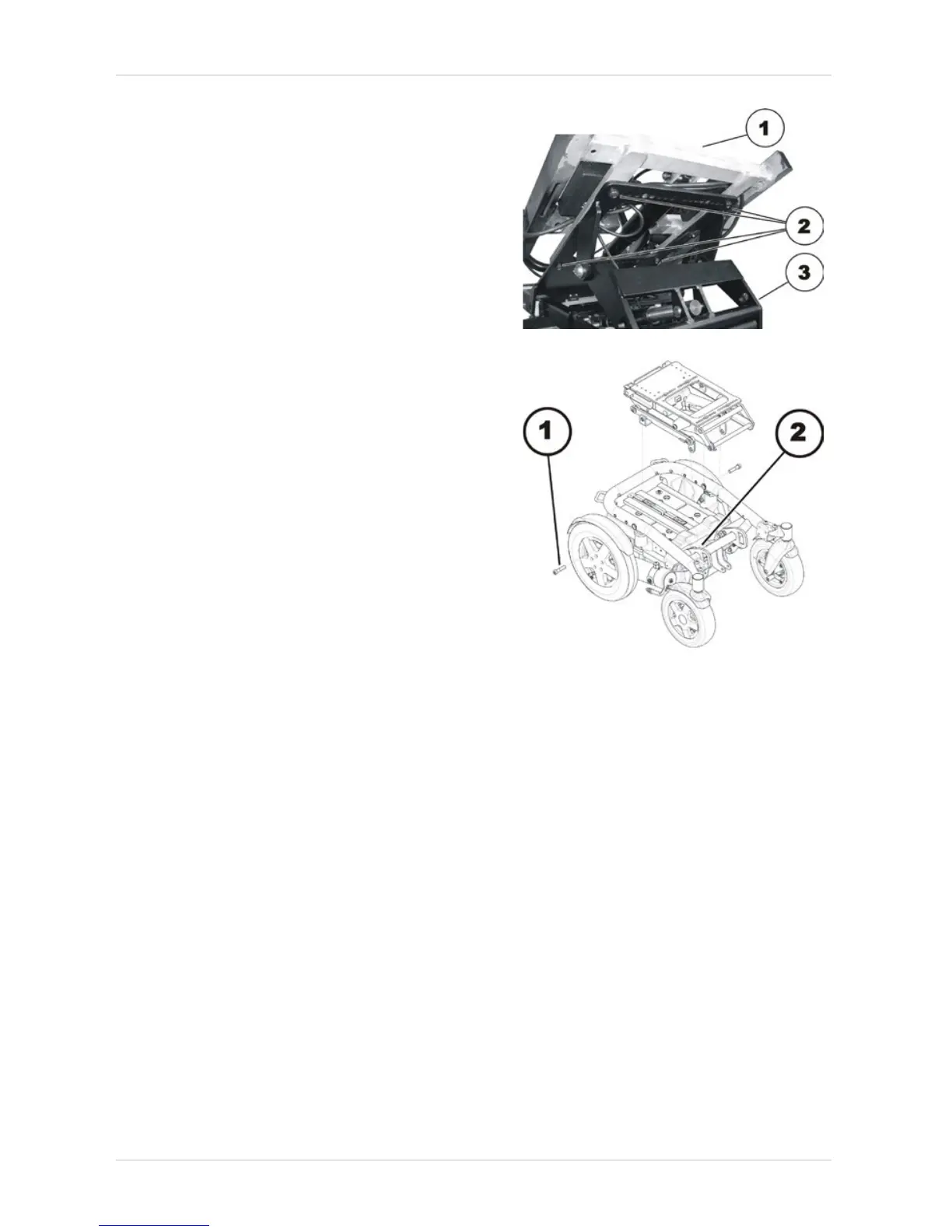

• Loosen and remove the four screws (2).
Depending on the tilt module, use a 13 mm
open-end wrench for all four screws
or
a 5 mm Allen key for the two in the front, and
a 13 mm open-end wrench for the two in the
back.
• Remove the seat support (1) from the tilt
module (3).
• Use the 10 mm Allen wrench to loosen and
remove both screws (1).
• Use the 24 mm open-end wrench and the 24
mm box wrench to loosen and remove both
screws (2).
• Remove the lifter from the vehicle frame and
replace it.
• Re-assembly is done in reverse order.
• Test all functions of the vehicle.
