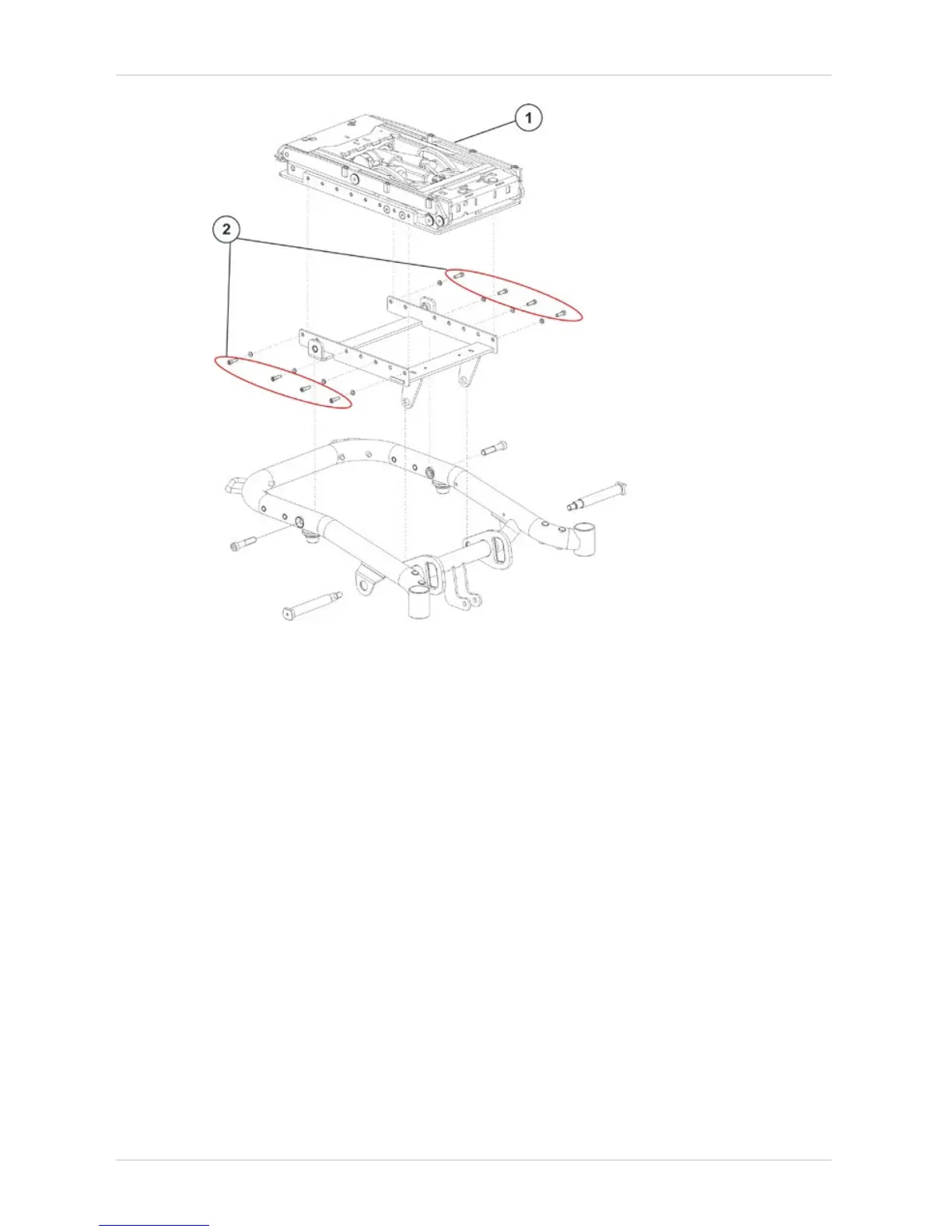

• Loosen and remove the screws (2) incl. the washers with a 5 mm Allen key.
• Lift the module of the seat angle adjustment (1) from the adapter and replace it.
• Reassembly takes place in the reverse order.
• To complete, check all seat tilting function.
