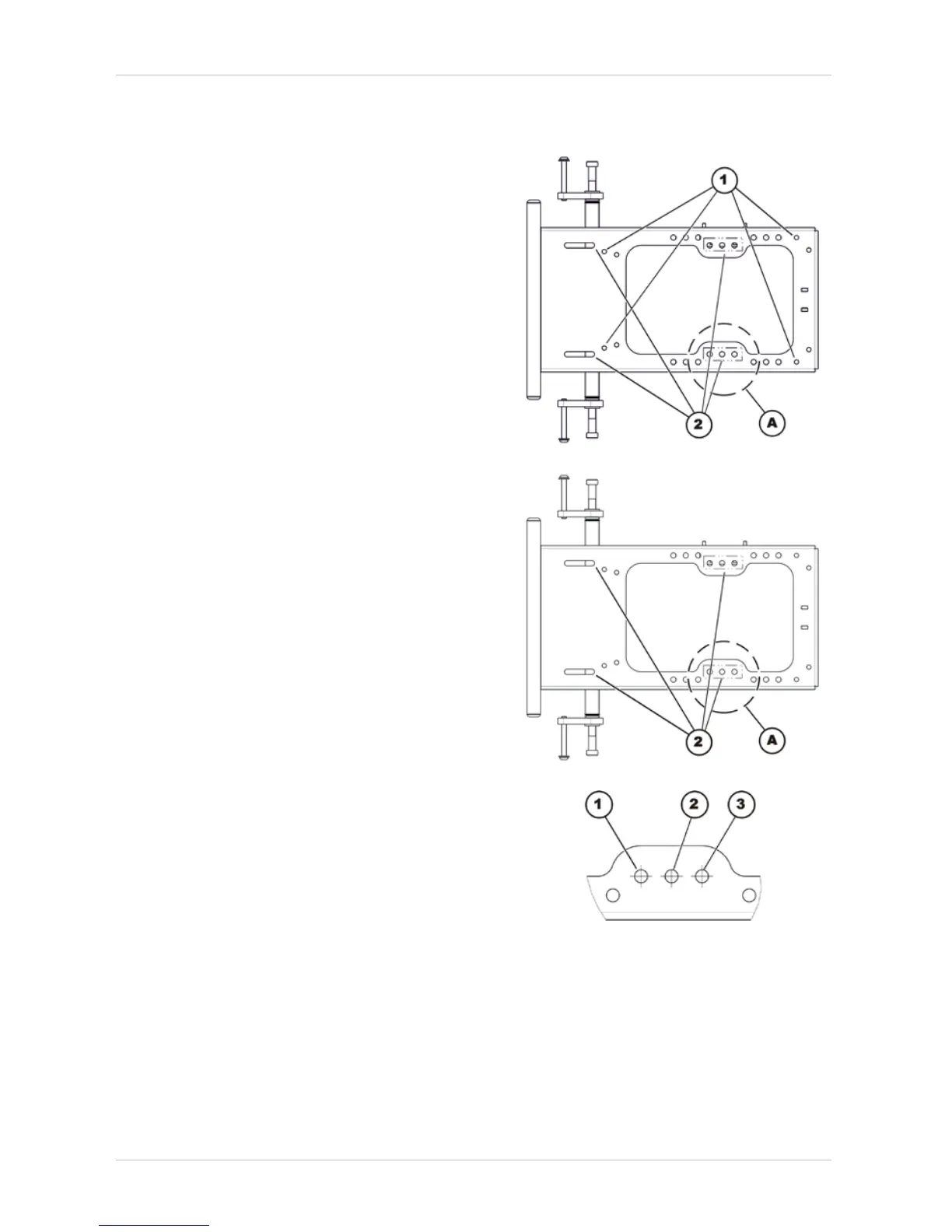

Screw fixation positions of various seats and tilt modules
12° tilt module
1 – Screw fixation positions of the standard seat
2 – Screw fixation positions of the Flex2
A – Screw fixation variations Flex2,
see details below
20° tilt module
2 – Screw fixation positions of the Flex2
A – Screw fixation variations Flex2,
see details below
Screw fixation variations Flex2
1 – Rear
2 – Middle
3 – Front
