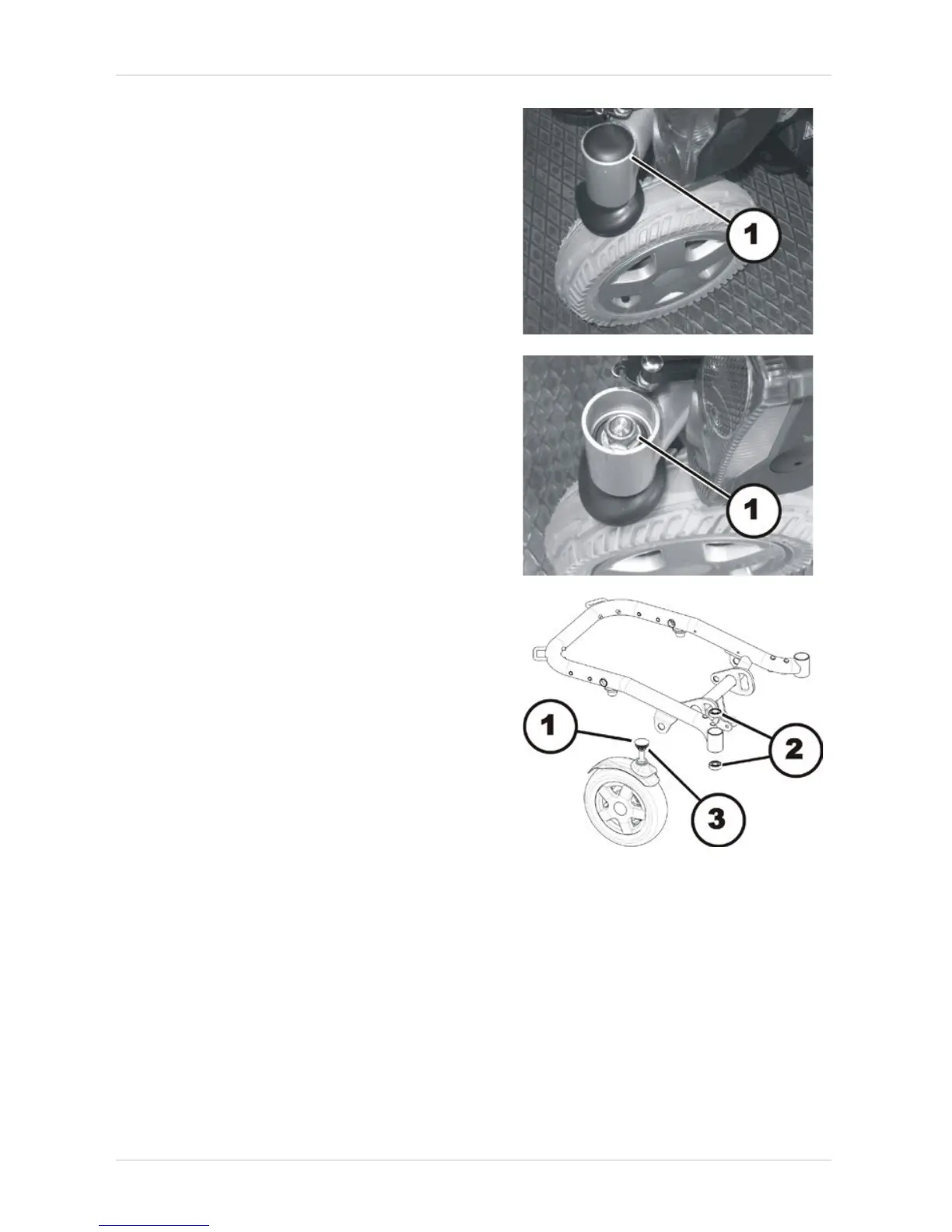

• Carefully remove the plastic cap (1) with the
• Loosen the 19 mm nut (1) with the socket
spanner and remove it. Hold the wheel so
that it does not rotate when the nut is being
removed.
• Pull the steering head shaft upwards out of
the steering head tube.
• Take the washers out of the tube.
• Take the ball bearing out of the tube.
• The adjacent figure shows an overview of
the individual parts.
1. Plastic cap
2. Ball bearing
3. 19 mm nut
• Reassembly takes place in reverse order to
disassembly
• Ensure that you insert the ball bearings
exactly as described below.
• Also ensure that the washers are correctly
replaced.
