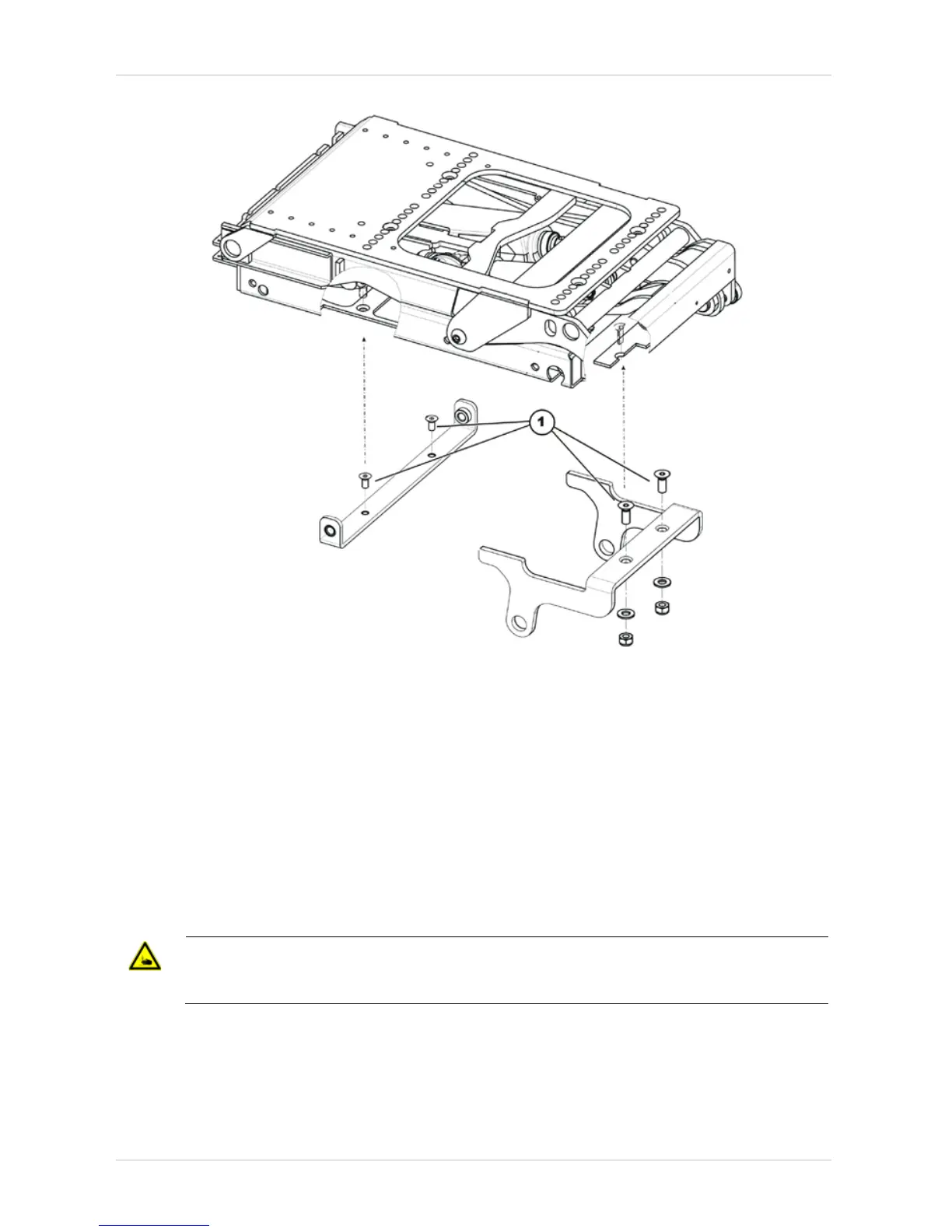

• Loosen the four screws (1).
• Lift the lifter / tilt module out of the frame.
Installing the tilt module:
• Install the tilt module in reverse order. Make sure that seat tilt mounting brackets (2) are affixed
with screws to the top holes in the seat frame brackets (5).
• Tighten the connecting screws of the seat tilt mounting brackets and the seat frame mounting
brackets to
18 Nm.
• When installing the cables again, make sure that they are placed in such a way that they
cannot be crushed or damaged in any position of the tilt module.
ATTENTION: Danger of crushing!
The seat is very heavy. Danger of injury to hands and feet!
• Use proper lifting techniques.
• Install the seat.
• Install all covers again.
• Check all functions of the vehicle and go for a test drive.
