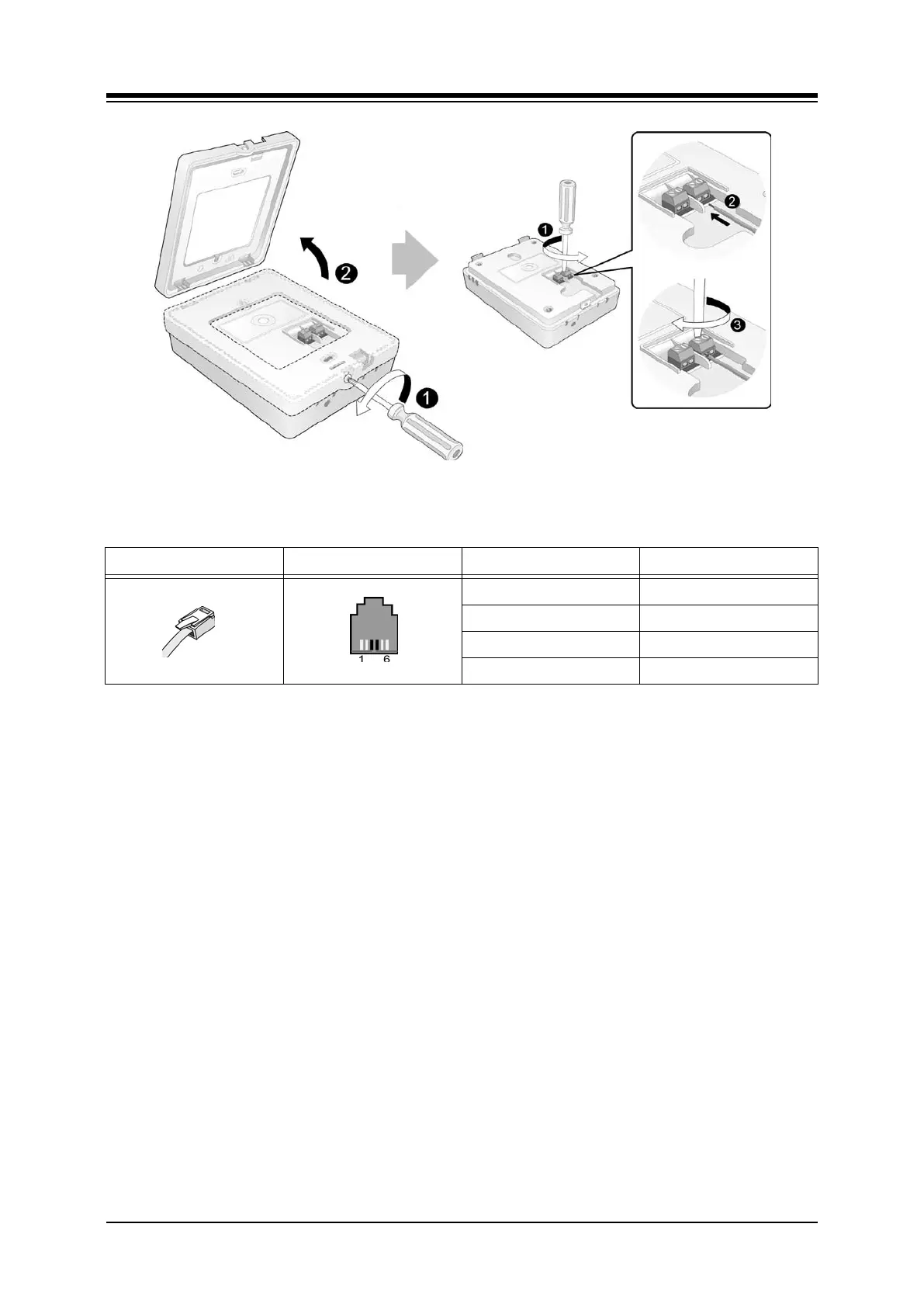

Figure 6.1.3.2-1 Door Phone Box Wiring
Table 6.1.3.2-1 LDP-DPB Pin-out Chart
Line Cord CONNECTOR PIN SIGNAL NAME
RJ11 1,2 Not used
3 Ring
4 Tip
5,6 Not used
