5.5.2 VOIB (Voice over Internet protocol Board, 8 and 24channel)
The VOIB is available in two (2) models, the VOIP8 with 12 IP channels and the VOIB24 with
24 IP channels. Other than the number of channels, there are no significant differences in the
VOIB8 and VOIB24. The VOIB provides the Ethernet interface for Ericsson-LG IP Phones, SIP
phones and trunks, IP Networking and applications. The VOIB is used to provide packet relay
for remote devices to communicate with the host and translate between the iPECS proprietary
protocols and other standard protocols (H323 rev.4, SIP RFC3261).
The VOIB connects to a standard IEEE 10/100 Base-T Ethernet switch port and supports auto
negotiation for speed (10MBps or 100Mbps) and full or half-duplex operation. The VOIB
supports various codecs (g.711, g.726, g.729, g.723.1), T.38 for IP FAX, and Echo Cancellation
(g.168).

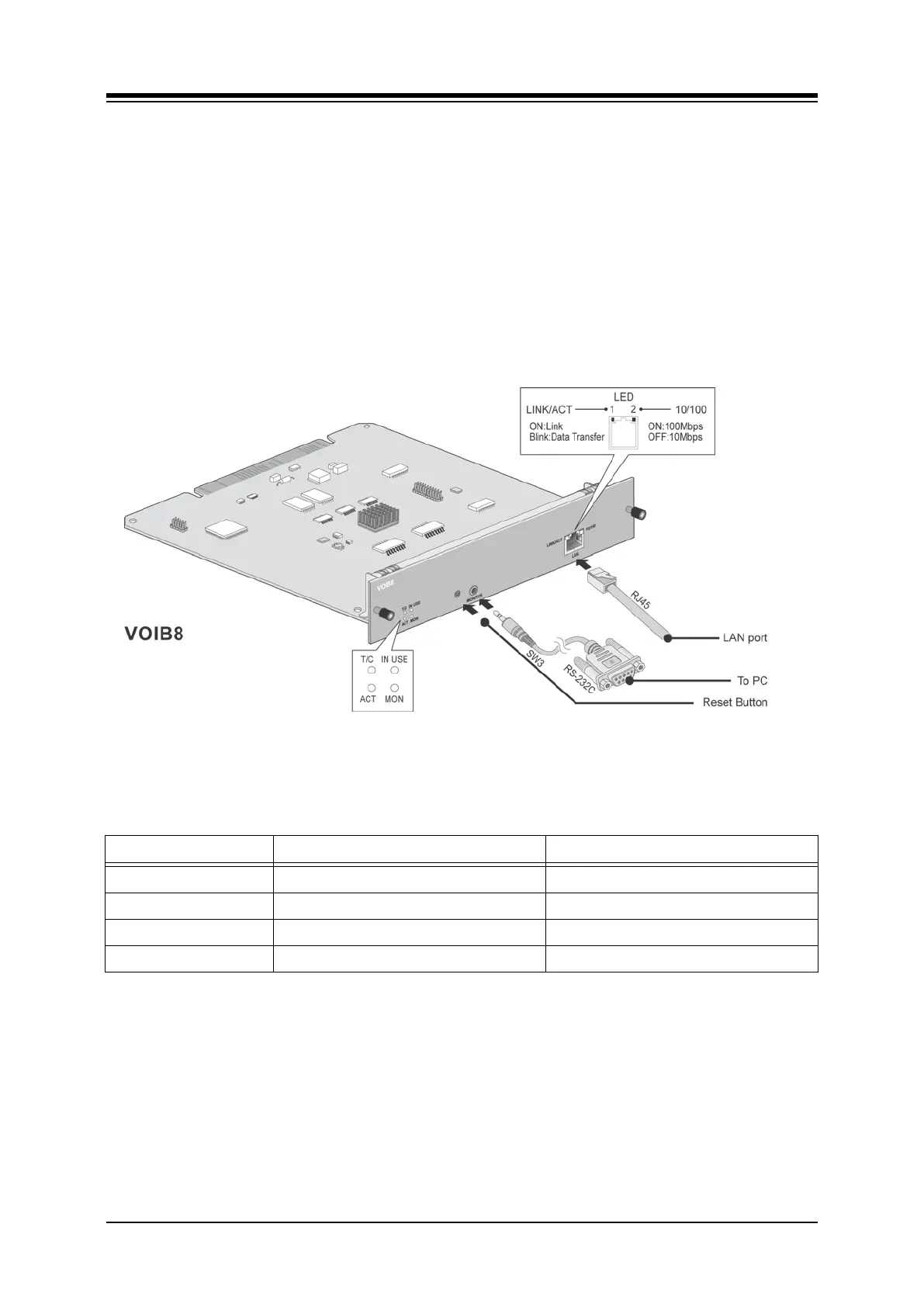

Figure 5.5.2-1 VOIB8
5.5.2.1 Switch and LED Functions
Table 5.5.2.1-1 Switch Functions
SWITCH FUNCTION REMARK
SW1 4-Pole Dip-switch (Function : not defined) Default : Off
SW2
SW3 Reset switch
SW4
