iPECS-MG
Hardware Description and Installation Manual Issue 1.1
95
6.1.5 Wall Mount
6.1.5.1 LDP-7000 and LIP-7000 Wall Mounting
The LDP-7000 or LIP 7000 series phones can be mounted on the wall using the appropriate
Wall Mount Kit. The Wall Mount Kit is installed as described below and shown in Figure 6.1.5.1-
1.
Using the appropriate Wall Bracket, mark and drill two (2) 7 mm holes for the plastic
wall anchors provided.
Insert the two (2) anchors into the holes and insert and tighten the 2 screws leaving
about 6 mm (¼-inch) exposed. Refer to Figure 6.1.5.1-1.
Connect one end of a short cable terminated in RJ11s or RJ45s to the LDP-7000 or
LIP-7000 series Phone, respectively, and then connect the other end in a wall jack.
Mount Wall Mount bracket on the phone.
Slide the Wall Mount bracket over the screws, if loose, tighten the screws slightly
and mount the Wall Mount bracket again.
Insert the Wall Mount handset hook to prevent the handset from slipping when wall
mounted. For the LIP-7000 series, the Handset hook is molded as part of the Wall
Mount bracket as shown in Figure 6.1.5.1-1.
Figure 6.1.5.1-1 LIP-7000 Wall Mount Installation
6.1.5.2 LIP-8000 & 8000E Wall Mounting
The LIP-8000 & 8000E series phones incorporate wall mount into the base of the phone
housing. Using the instructions below and Figure 6.1.5.2-1, wall mount the LIP-8000 & 8000E
phone.
Mark and drill two (2) 7mm holes for plastic wall anchors.
Insert the two (2) anchors into the holes and insert and tighten the 2 screws leaving
about 2.5 mm (1/8-inch) exposed. Refer to Figure 6.1.5.2-1.
Slide the LIP-8000 phone over the screws and assure the phone is secure. Note it
may be necessary to remove the phone and tighten or loosen the screws for a
secure mounting.

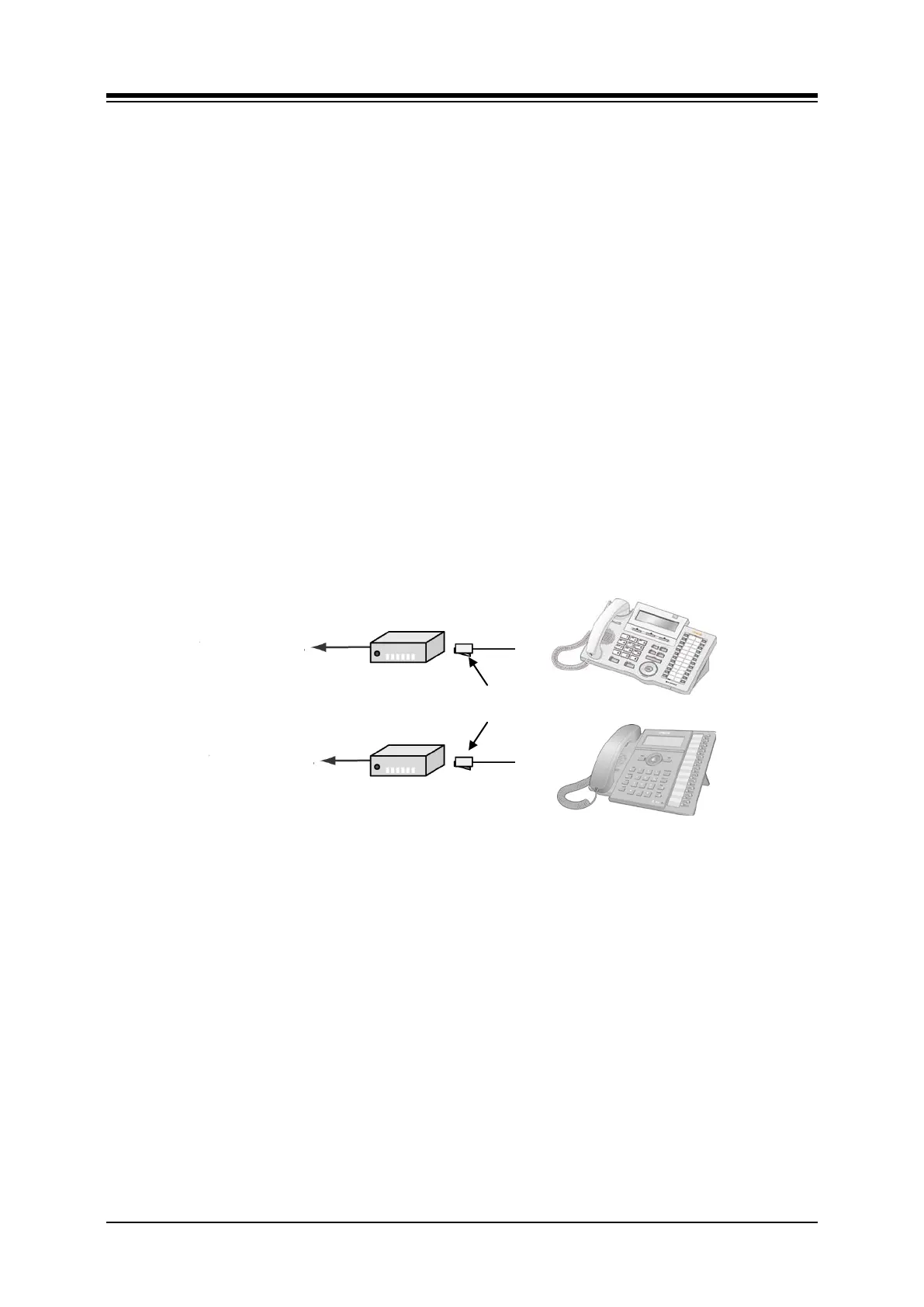

LIP-8000 & 8000E Series Keyset
VOIB
VOIB
10/100 Base-T
Switch
10/100 Base-T
Switch
To Next Page
