5.4.5 WTIB (Wireless Telephone Interface Board) for DECT
The WTIB is the iPECS-MG interface to the System DECT solution for in-building mobility with
transparent handover. The WTIB supports European DECT and is not intended for use in other
regions. The System DECT solution is comprised of the 4 or 8 port Wireless Telephone
Interface Boards (WTIB4/8), System DECT Base Stations providing the fixed radio receivers
(cells), and DECT handsets. The figure below is a reference model of the iPECS-MG System
DECT solution.

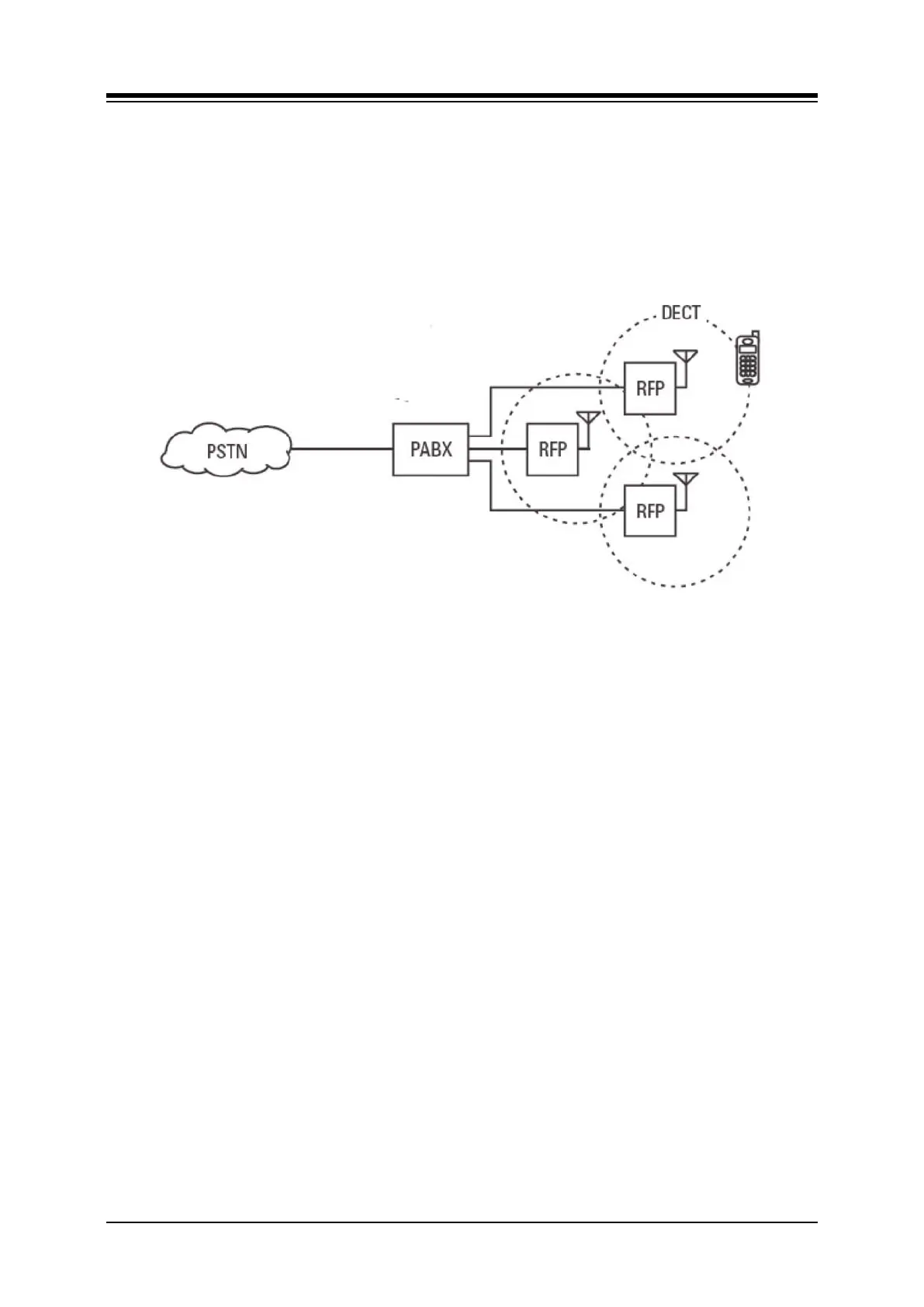

Figure 5.4.5-1 iPECS-MG DECT Reference Model
The following components make up the System DECT solution:
 WTIB4, WTIB8 board – Up to three WTIB4s or WTIB8s can be installed in the
iPECS-MG300, 2 in the MG100 System. The WTIB4 and WTIB8 have 4 or 8 Base
Station ports, respectively.
 Base Station (GDC-600B/GDC-600BE) – The System DECT Base Station can
process up to six simultaneous calls. The Base Station is intended for indoor use
only.
 Wireless Terminal (GDC-400H/450H) – Up to 192 wireless terminals can be
registered (refer to the DECT Wireless Terminal User Guide). Older versions may
be compatible, check with your local representative.
