iPECS-MG
Hardware Description and Installation Manual Issue 1.1
82
5.7.2 Rack Mount Wiring
To dress wiring for a Rack mount installation,
1. Ensure all boards are installed and that wiring is complete.
2. Using the supplied Cable Ties, tie all wiring cables and Power cord (if desired)
together in a neat bundle.
3. Using the supplied Cable Ties, tie the bundled cables using holes in the 19” Rack.
4. Dress the cable down the rack back to the wiring termination point.

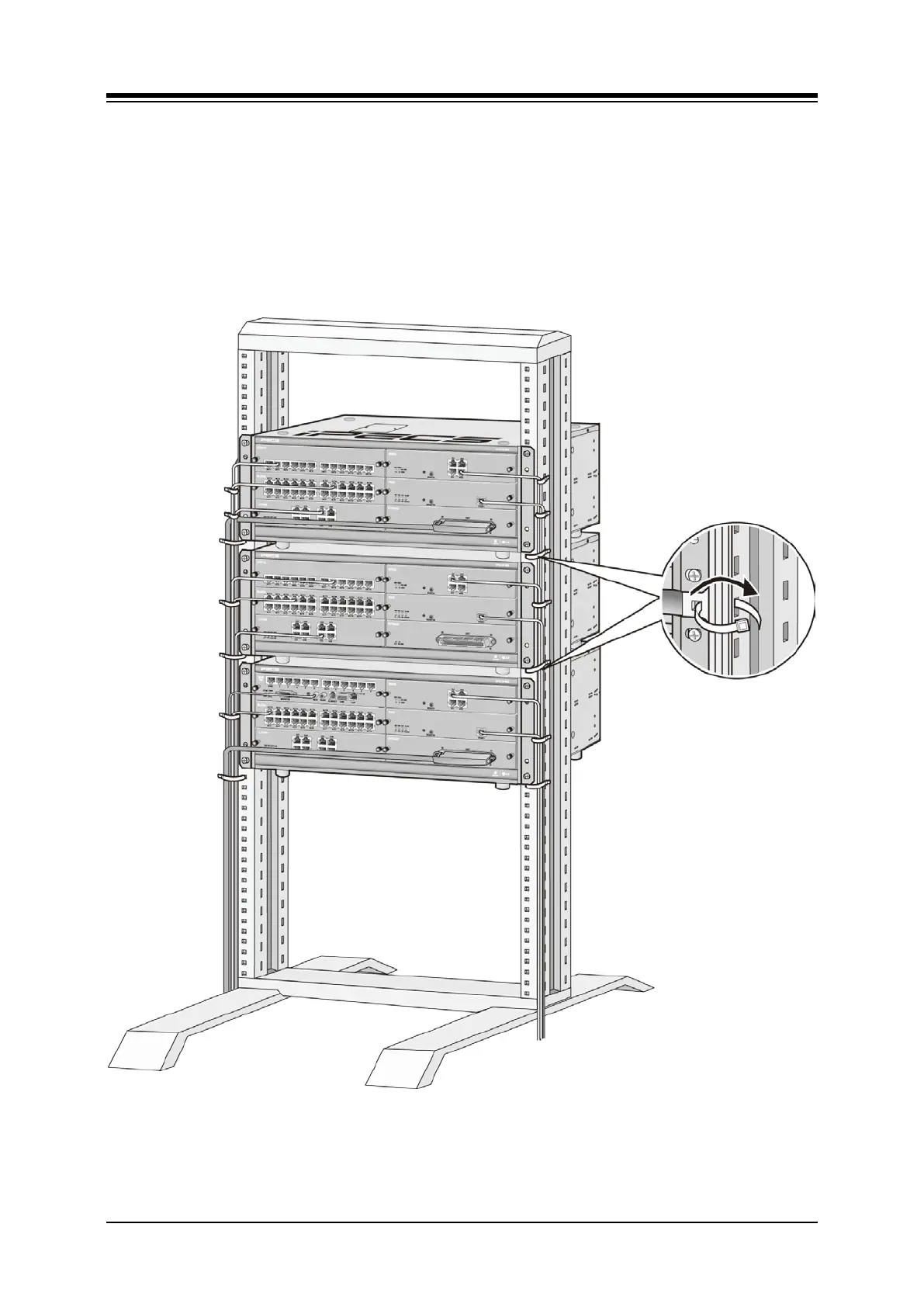

Figure 5.7.2-1 Rack Mount Cable Dressing
