iPECS-MG
Hardware Description and Installation Manual Issue 1.1
80
5.6 Serial to Audio Cable Specification
Several board types include a serial port presented as an Audio jack. This serial port is not
required for normal operation, it is only used for advanced diagnostics. Boards that include the
Audio Serial connector are PRIB, BRIB2/ BRIB4, AAIB/VMIB, VOIB, and WTIB.

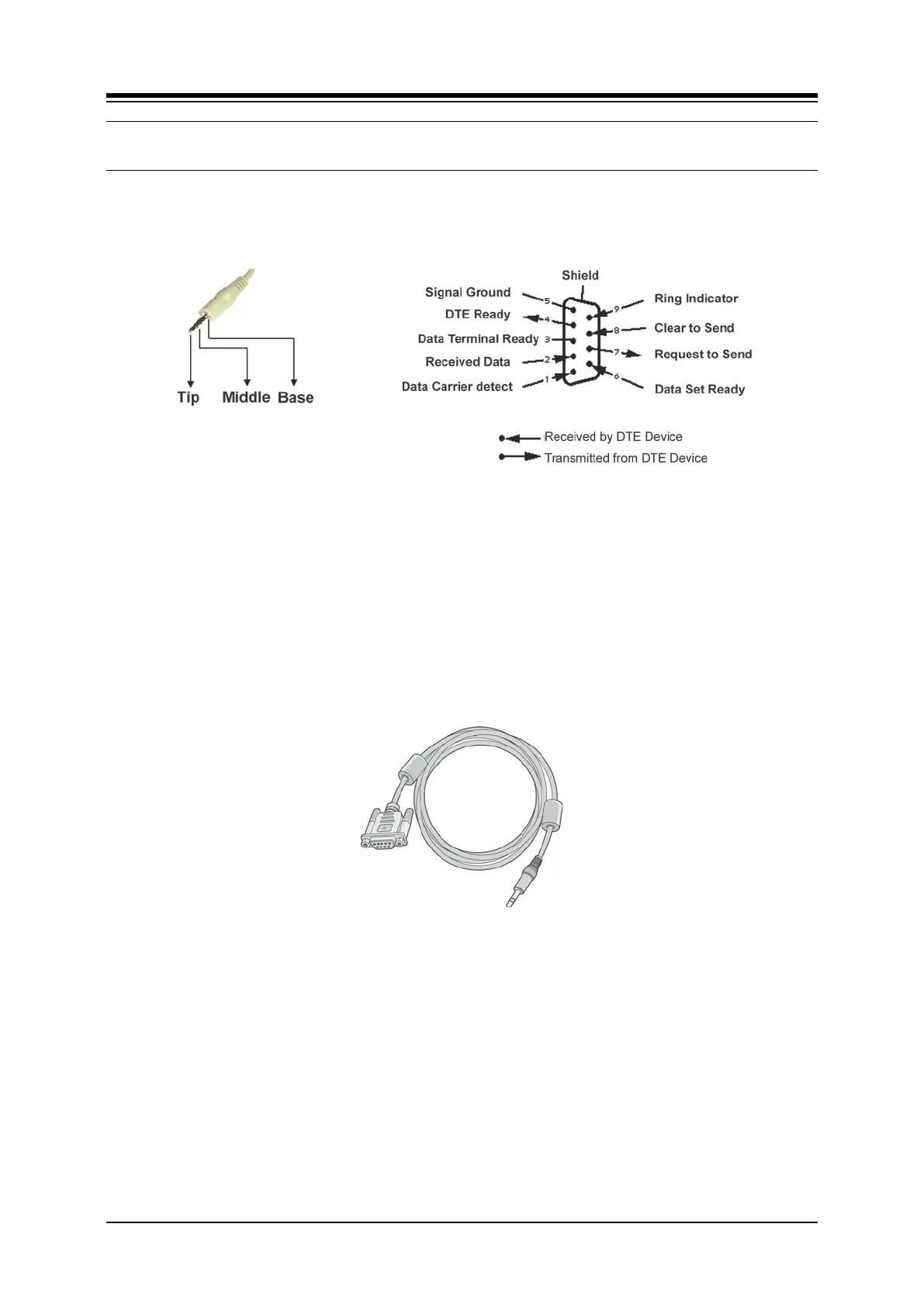

Figure 5.6-1 Audio Jack, Serial Specification
5.6.1 Serial to Audio Cable Wiring
Connection to the Serial port through the Audio connector is made with a Serial to Audio cable.
The cable should be terminated on one end with a DB9 RS-232 connector and on the other
end with an audio jack. The three (3) wires of the audio jack are wired to the DB9 as follows.
Wire the Tip conductor of the Audio jack to pin 2 of the DB9
Wire the Ring conductor of the Audio jack to pin 3 of the DB9
Wire the Grd conductor of the Audio jack to pin 5 of the DB9
Figure 5.6.1-1 Audio Jack to Serial Cable
