5.4.1.3 SLIB Wiring
The SLT is terminated to the center pair of each RJ45 connector. A separate RJ45 is provided
for each SLT port on the SLIB (12 or 24 connectors).
Referring to the pin-out chart below,
 Wire pins 4 and 5 of the RJ45 connector to the SLT termination point using UTP
cable. The maximum total wire length is 7500M/24Kft of 22 AWG wire or
5000M/16Kft of 24 AWG wire. For information on wiring the SLT, refer to section
6.1.2.2.
 Tag or number wiring for maintenance.

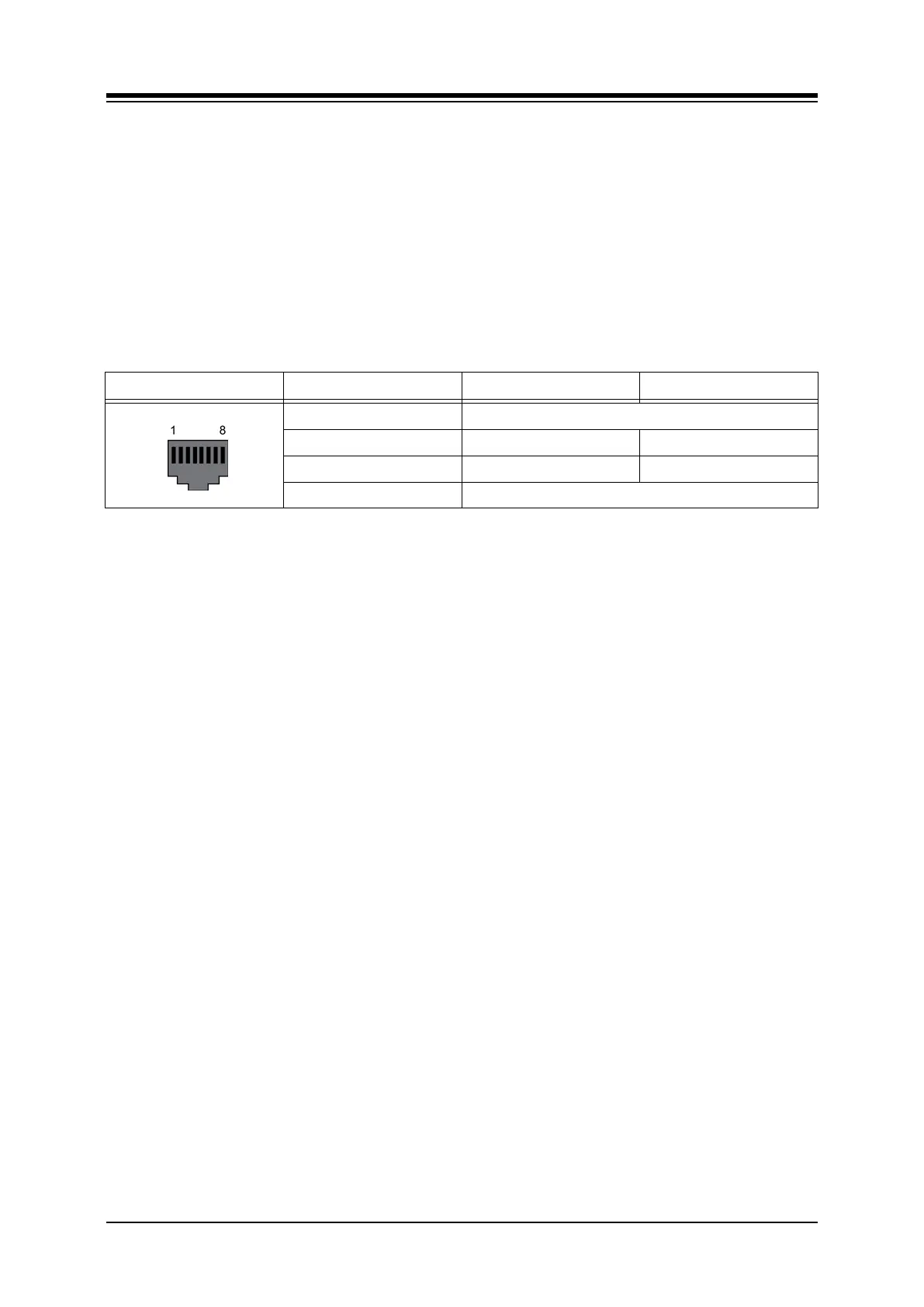

Table 5.4.1.3.1 SLIB 12/24
CONNECTOR PIN SIGNAL NAME FUNCTION
RJ45 1,2,3 Not used
4 SLT_RX Receive Data
5 SLT_TX Transmit Data
6,7,8 Not used
