5.4.3 DTIB (Digital Terminal Interface Board w/RJ-45)
The DTIB is available in two (2) models, the DTIB12 with 12 Digital Key Telephone Interface
ports and the DTIB24 with 24 DKT ports. Each port provides power and signaling to the DKT
over a single wire pair. Each DKT port of the DTIB is terminated in an RJ45 connector on the
front panel of the DTIB.

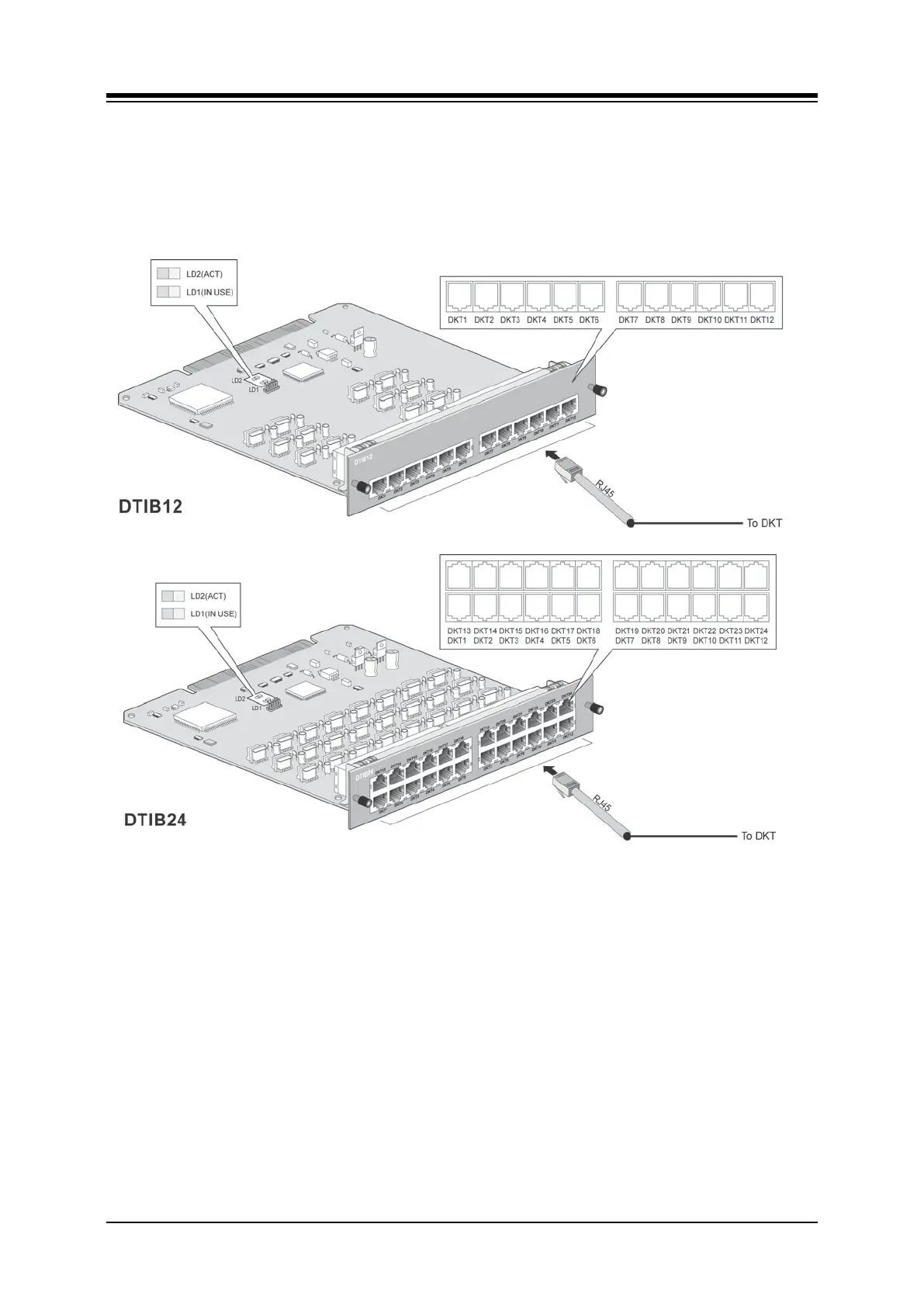

Figure 5.4.3-1 DTIB (Digital Telephone Interface Board
