5.5.1.4 VMIB and AAIB LAN Connector
The VMIB and AAIB include an RJ45 for connection to a 10/100 Base-T Ethernet (IEEE 802.3)
connection. The port supports auto negotiation for speed (10 or 100 Mbps) and full or half-
duplex operation. If need be, the RJ45 is wired as indicated in the RJ45 pin-out chart below.

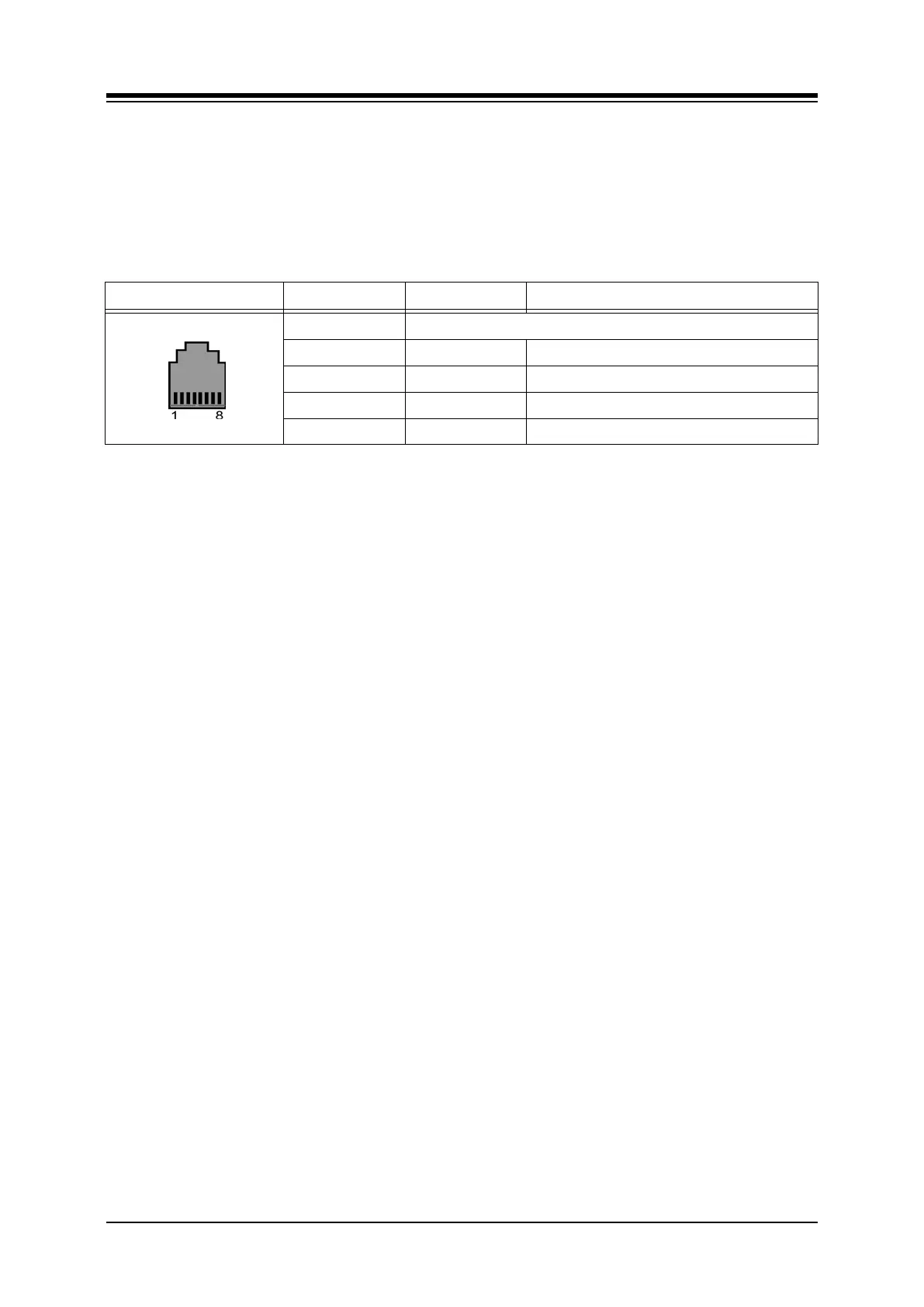

Table 5.5.1.4-1 VMIB & AAIB RJ45 Pin-out Chart
CONNECTOR PIN SIGNAL NAME FUNCTION
RJ45 4,5,7,8 Not used
1 TX+ Transmit Data
2 TX- Transmit Data
3 RX- Receive Data
6 RX+ Receive Data
5.5.1.5 Serial Port
The VMIB an AAIB include an Audio jack connected to a Serial port. The serial port is used for
diagnostic purposes. For wiring information, refer to section 5.6
