Table 5.3.2.3-1 RJ45
CONECTOR PIN
NAME
(T-mode)
FUNCTION
NAME
(S-mode)
FUNCTION
RJ45 1,2,7,8 Reserved
3 TX+ Transmit Data RX+ Receive Data
4 RX+ Receive Data TX+ Transmit Data
5 RX- Receive Data TX- Transmit Data
6 TX- Transmit Data RX- Receive Data

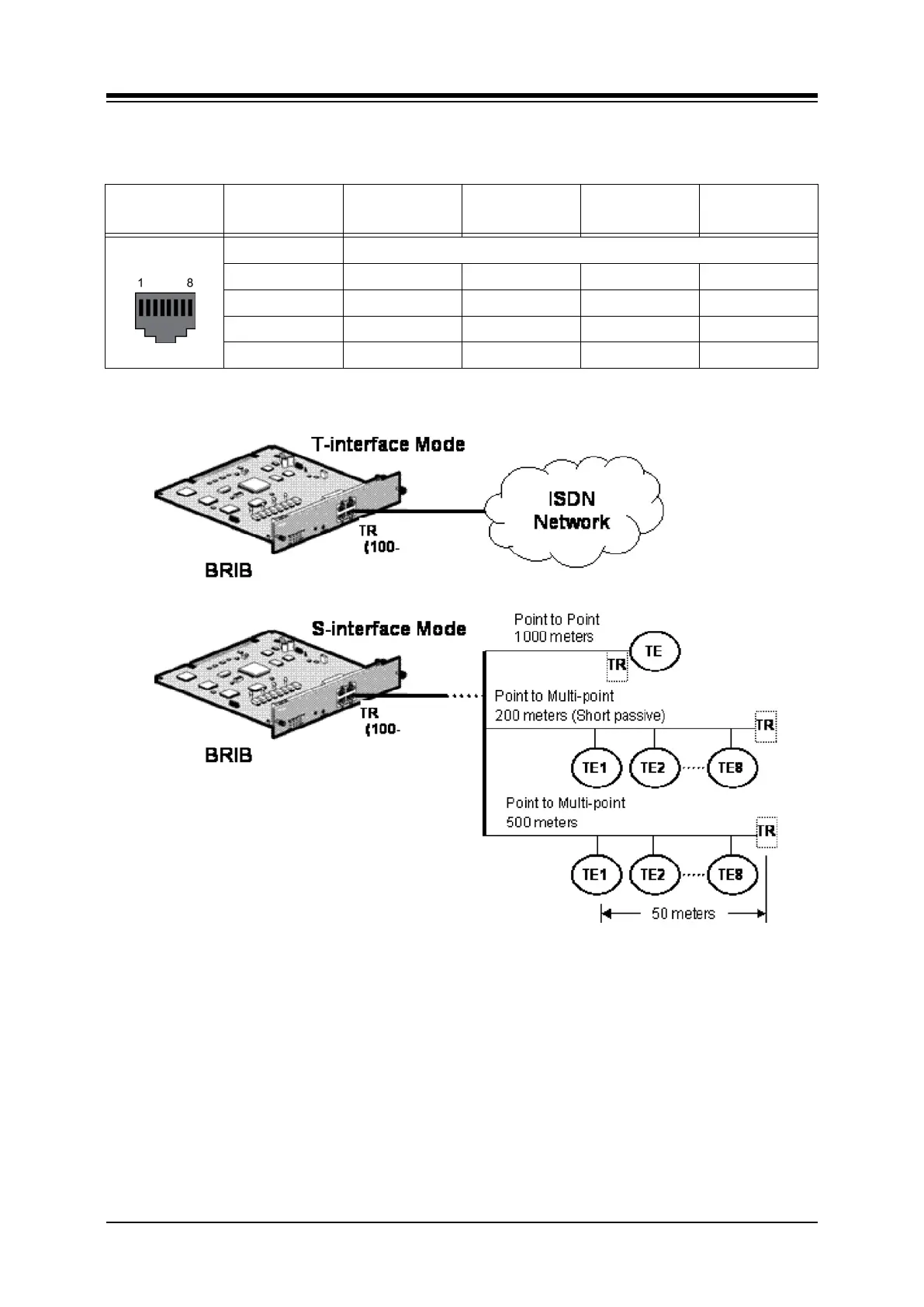

Figure 5.3.2.3-1 ISDN Connections (Basic Rate)
5.3.2.4 Serial Port
The PRIB includes an Audio jack connected to a Serial port. The serial port is used for
diagnostic purposes. For wiring information, refer to section 5.6.
