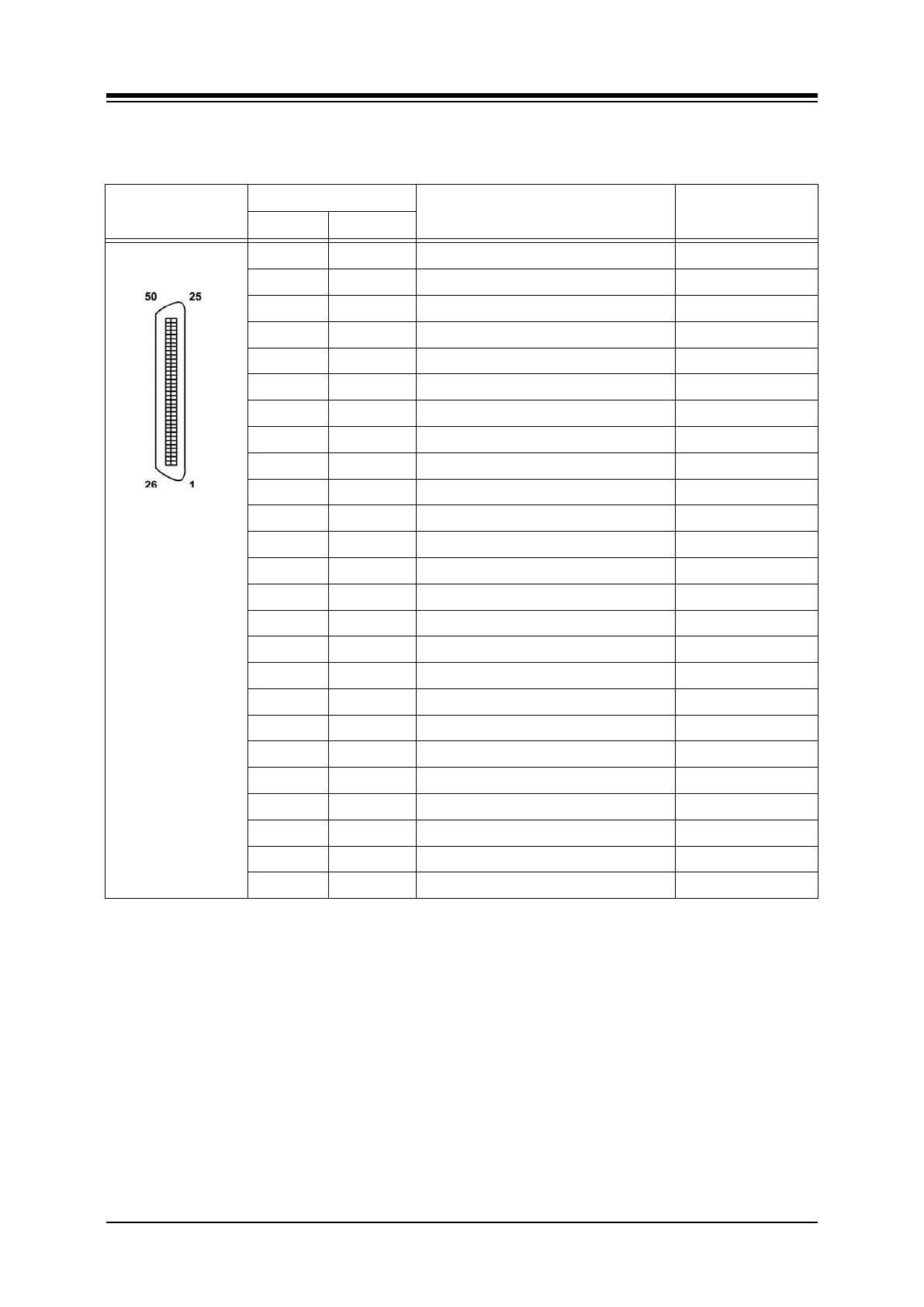

Table 5.4.2.1-2 SLIBC Pin-Out Chart
CONNECTOR PIN COLOR CODE SLIB PORT
VT VR
RJ21 1 26 1
2 27 2
3 28 3
4 29 4
5 30 5
6 31 6
7 32 7
8 33 8
9 34 9
10 35 10
11 36 11
12 37 12
13 38 13
14 39 14
15 40 15
16 41 16
17 42 17
18 43 18
19 44 19
20 45 20
21 46 21
22 47 22
23 48 23
24 49 24
25 50
