iPECS-MG
Hardware Description and Installation Manual Issue 1.1
92

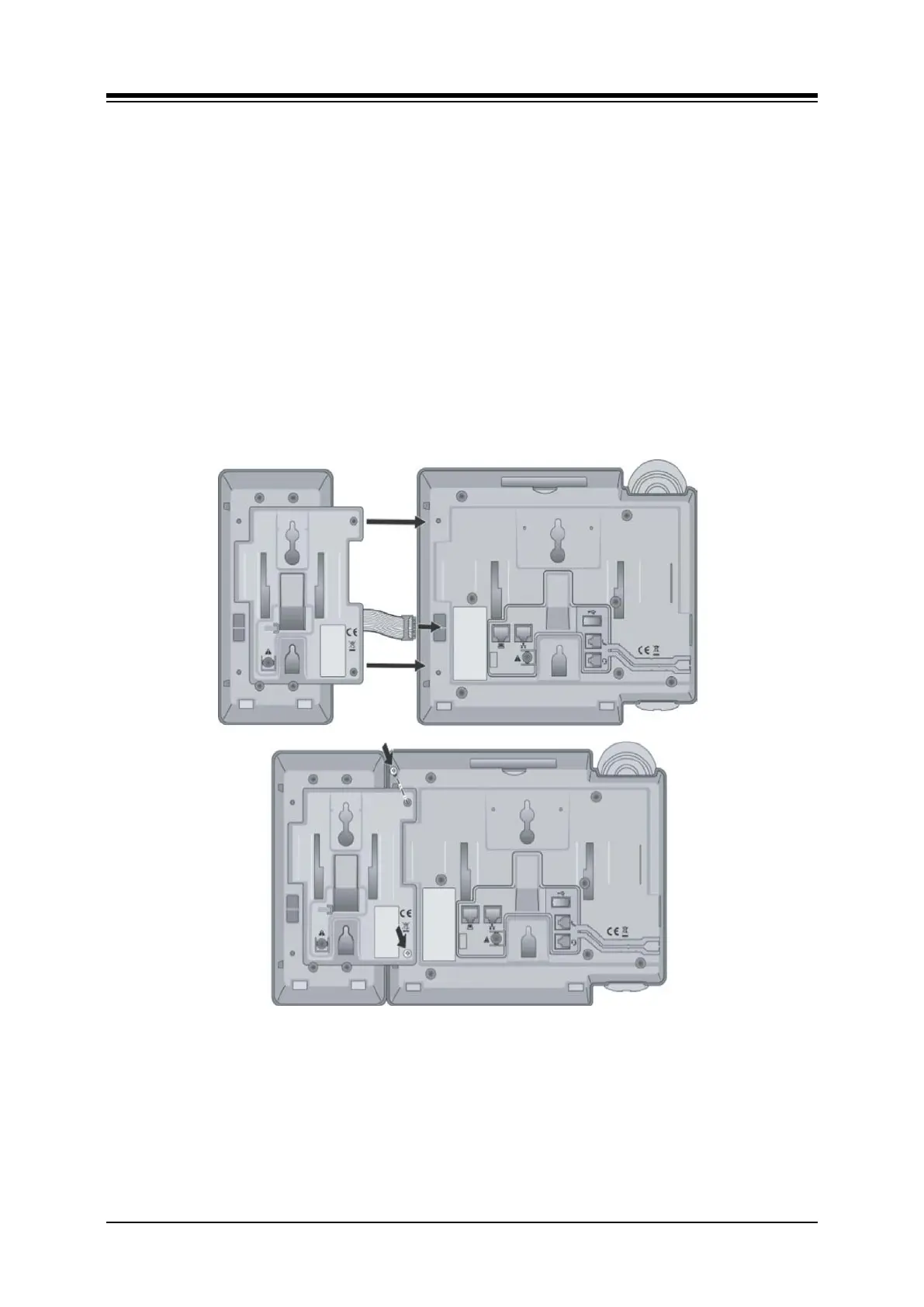

Referring to install an LIP-8000 series DSS Console,
turn the LIP phone and DSS Console upside down
remove the rubber plug in the LIP phone protecting the DSS serial cable connector.
insert the flat ribbon cable from the DSS Console into the connector in the LIP
phone.
insert and tighten two (2) screws through the DSS Console mounting flange into the
LIP phone. Caution, do not over-tighten the screws as this may damage the LIP
phone housing.
for additional DSS/BLF Consoles, repeat the procedure connecting one console to
the previous console. A maximum of three consoles can be supported by an LIP-
8000 series phone.
for each LIP-8048DSS and LIP-8040LSS, insert the DC plug of an AC Adaptor-K to
the DC input of the DSS Console and plug the AC plug into an appropriate (110/240
VAC) outlet.
