iPECS iPECS-MG - Page 53

iPECS-MG
Hardware Description and Installation Manual Issue 1.1
43

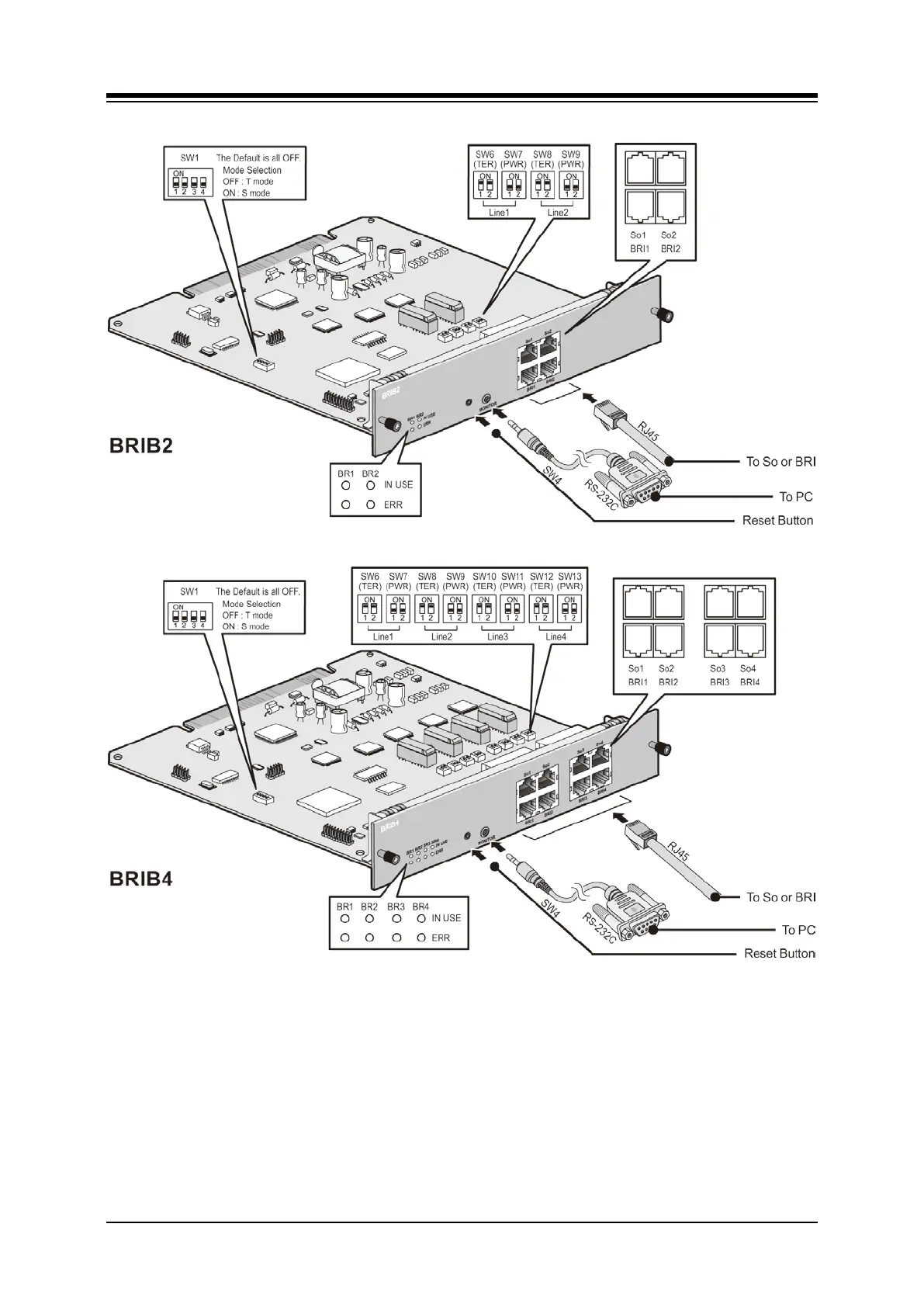

Figure 5.3.2-1 BRIB2 and BRIB4
Note
iPECS-MG does not support daisy chained clocking for digital lines. The clock priority
and synchronization is controlled by Admin. For details, refer to PGM 301 of the iPECS-
MG Admin Manual.
