ISHIDA UNI-7 Service Manual

Chapter 8 ADJUSTMENT MODE
8
ADJUSTMENT MODE
8.1 ADJUSTMENT MODE ENTRY
1.

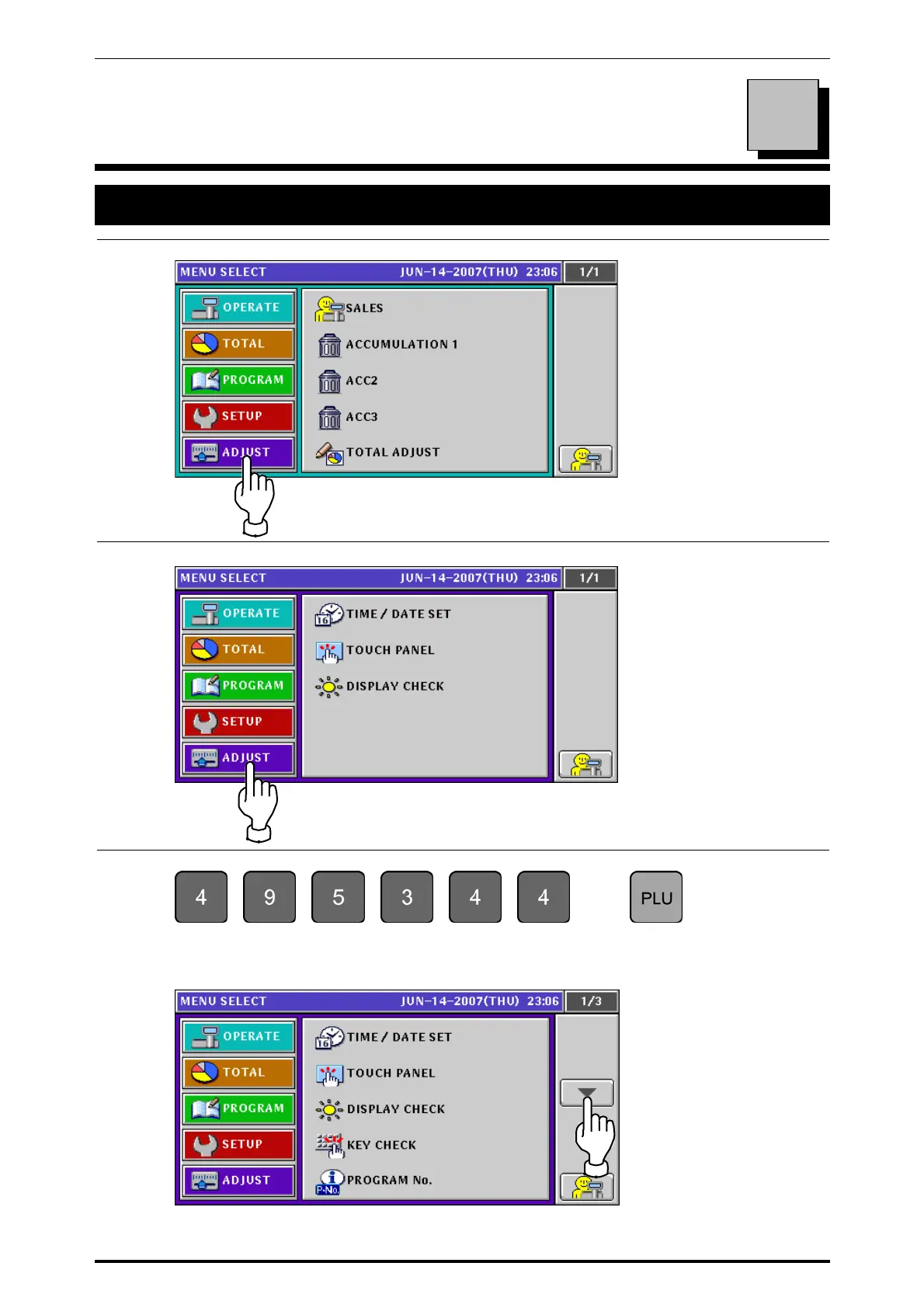

Press the [ADJUST] button on the Menu Select screen.
2.
The Adjustment Menu screen appears.
3.
Enter “495344” and press the [PLU] key on the key sheet to enter Service Mode.
Î
Hidden menus come up on the screen.
Press the [
b] or [
a
] button when changing the pages.
UNI-7 Service Manual 8-1

ISHIDA UNI-7 Specifications

General

Use conditions	Temperature: -5 to 35°C Humidity: 30 to 85%, Non condensing.
Power supply:	AC100 – 240V, 50 / 60Hz
Power consumption	1.0A/0.5A
Weighing capacity Scale interval	15 kg: 0 to 6/0.002 kg, 6 to 15/0.005 kg 30 lb: 0 to 15/0.005 lb, 15 to 30/0.01 lb
Weighting accuracy	1/3000
Printing method	Direct thermal method
Printing speed	100mm/second, 120mm/second Note: The printing speed may vary according to label conditions.
Printing effective size	56mm
Label size	Label width: 30mm to 60mm Label length: 20mm to 150mm
Operator/Customer display	7.0 inch color liquid crystal with back light, 480 X 234dots
Thermal head	2 inches (448dots) and 8 dots/mm
Number of label cassettes	7 cassettes
Program store medium	Flash ROM (32M bytes)
Input/Output	LAN 1 channel USB 1 channel CF 1 channel Drawer 2 channels
