ISHIDA UNI-7 - Hanging Type Disassembly Procedures

Chapter 5 MACHINE DISASSEMBLY

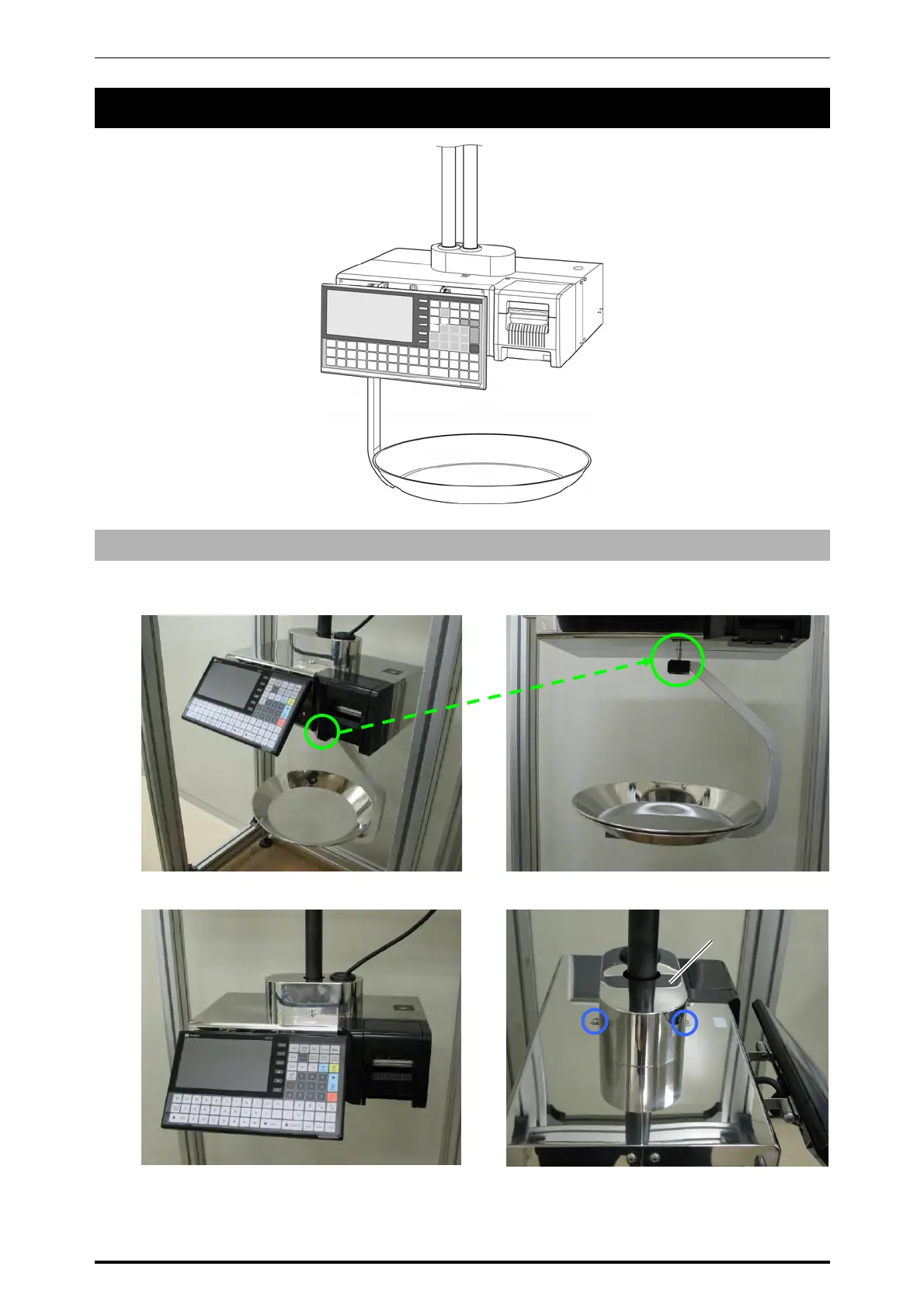

5.6 HANGING TYPE
5.6.1 HANGING POLE
1.
Disengage the joint section to remove the weigh platter unit.
2.
Remove the weigh platter unit.
.
3.
Remove the two screws fixing the hanging
pole cover.
Hanging pole cover
Weigh platter unit
5-28 UNI-7 Service Manual
