ISHIDA UNI-7 - Elevated Type Disassembly Procedures

Chapter 5 OVERVIEW
5.5 ELEVATED TYPE

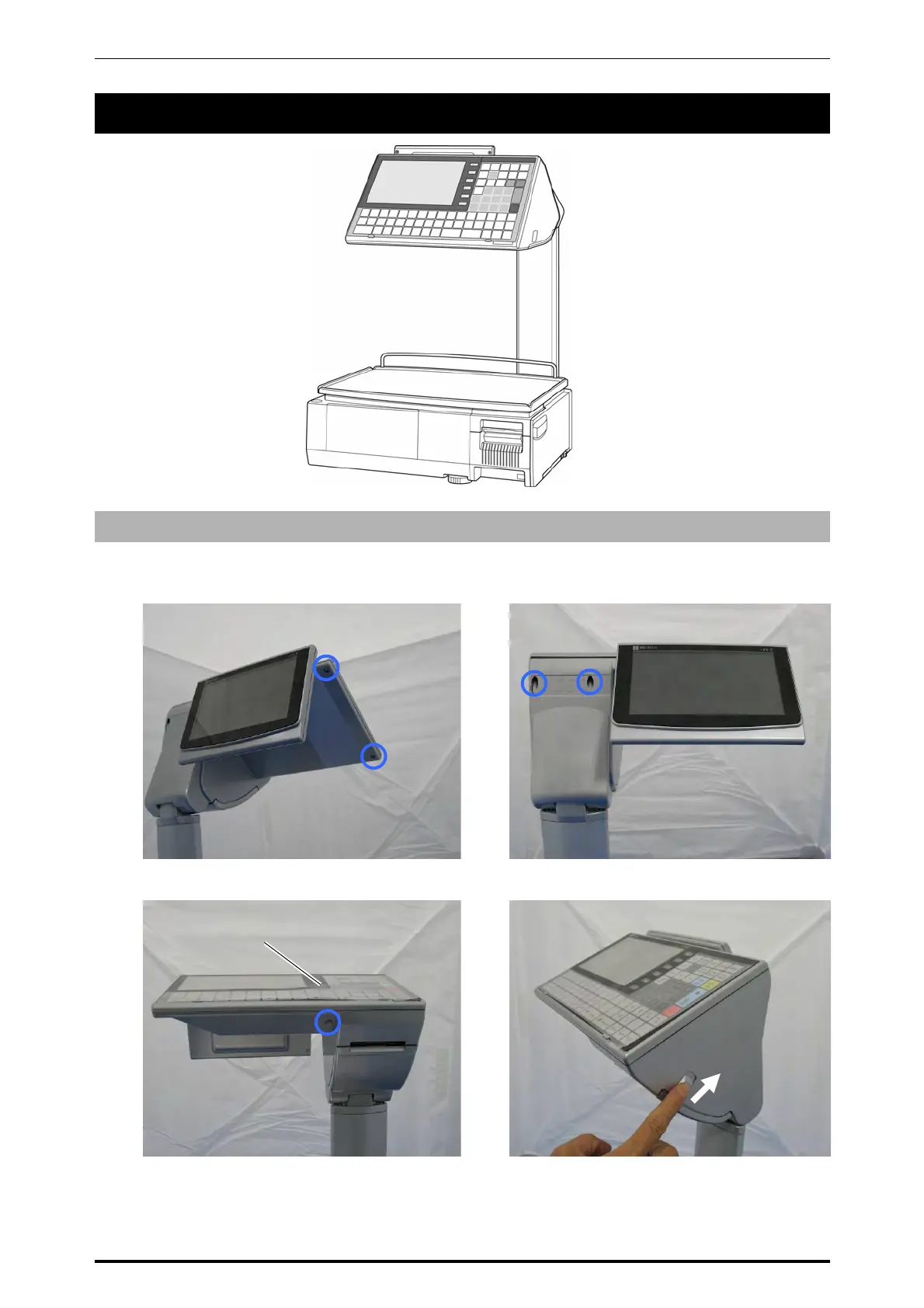

5.5.1 OPERATION PANEL UNIT (FOR DUAL PRINTER)
1.
Remove the two screws located on the
bottom of the operation panel unit.
2.
Remove the two screws located at the
customer display side.
3.
Remove the screw located on the bottom of
the operation panel unit.
4.
Slide the roll holder release lever in the
arrow direction.
Operation panel
5-22 UNI-7 Service Manual
