ISHIDA UNI-7 Service Manual

Chapter 5 MACHINE DISASSEMBLY
5
MACHINE DISASSEMBLY

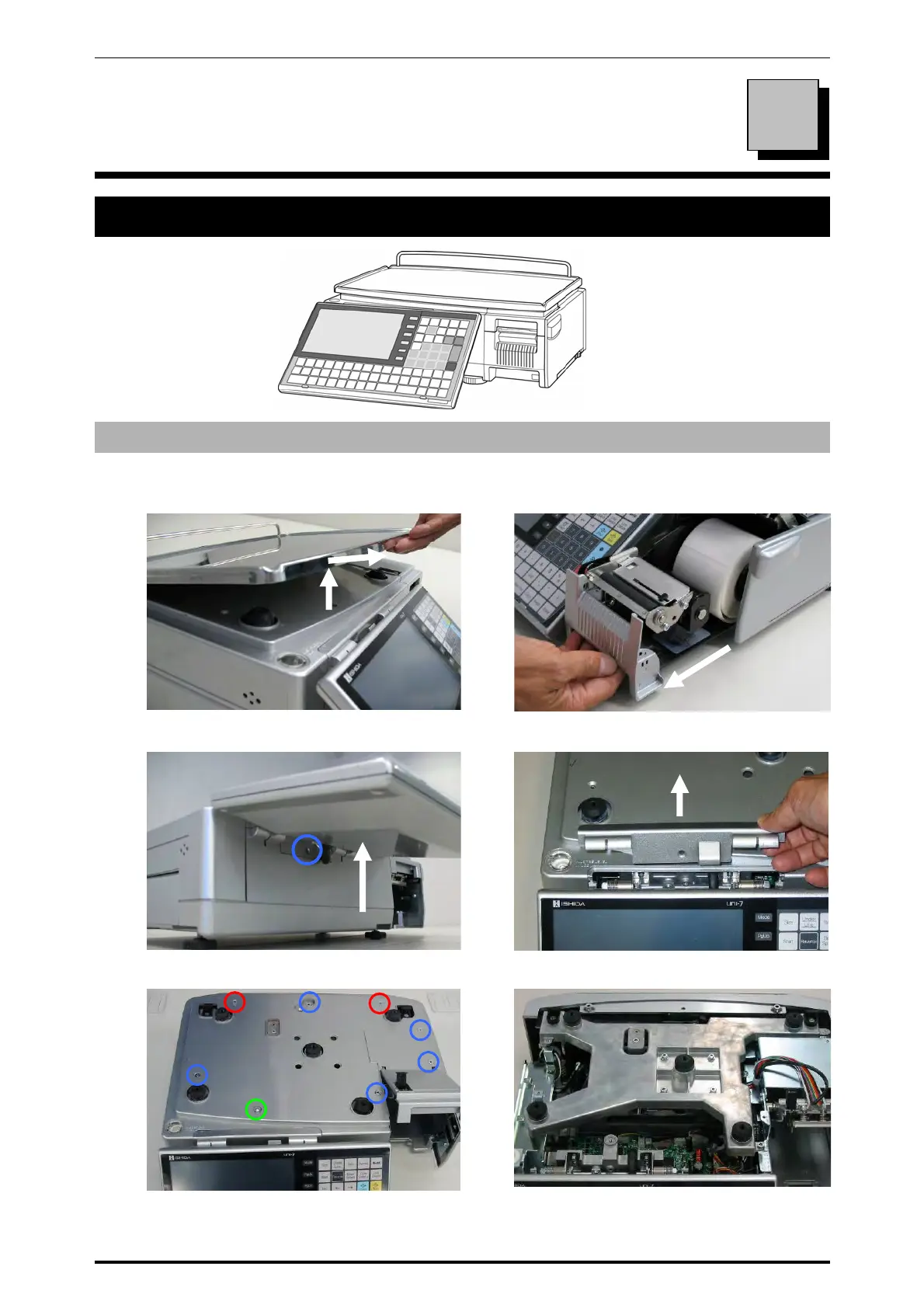

5.1 BENCH TYPE
5.1.1 UPPER CASE
1.
Hold up the front side of the weigh platter
and pull to remove the platter.
2.
Pull out the cassette unit from the main unit.
3.
Raise the operation panel and remove the
screw fixing the hinge cover.
4.
Make the operation panel angle about 45°
and pull out the hinge cover.
5.
Remove the five screws (blue), two tapping
screws (red), and one TP screw (green).
6.
Remove the upper case.
Upper case
Weigh platter holder
* Reverse this procedure for assembly.
UNI-7 Service Manual 5-1

ISHIDA UNI-7 Specifications

General

Use conditions	Temperature: -5 to 35°C Humidity: 30 to 85%, Non condensing.
Power supply:	AC100 – 240V, 50 / 60Hz
Power consumption	1.0A/0.5A
Weighing capacity Scale interval	15 kg: 0 to 6/0.002 kg, 6 to 15/0.005 kg 30 lb: 0 to 15/0.005 lb, 15 to 30/0.01 lb
Weighting accuracy	1/3000
Printing method	Direct thermal method
Printing speed	100mm/second, 120mm/second Note: The printing speed may vary according to label conditions.
Printing effective size	56mm
Label size	Label width: 30mm to 60mm Label length: 20mm to 150mm
Operator/Customer display	7.0 inch color liquid crystal with back light, 480 X 234dots
Thermal head	2 inches (448dots) and 8 dots/mm
Number of label cassettes	7 cassettes
Program store medium	Flash ROM (32M bytes)
Input/Output	LAN 1 channel USB 1 channel CF 1 channel Drawer 2 channels
