Chapter 5 MACHINE DISASSEMBLY
5.6.2 MAIN BOARD

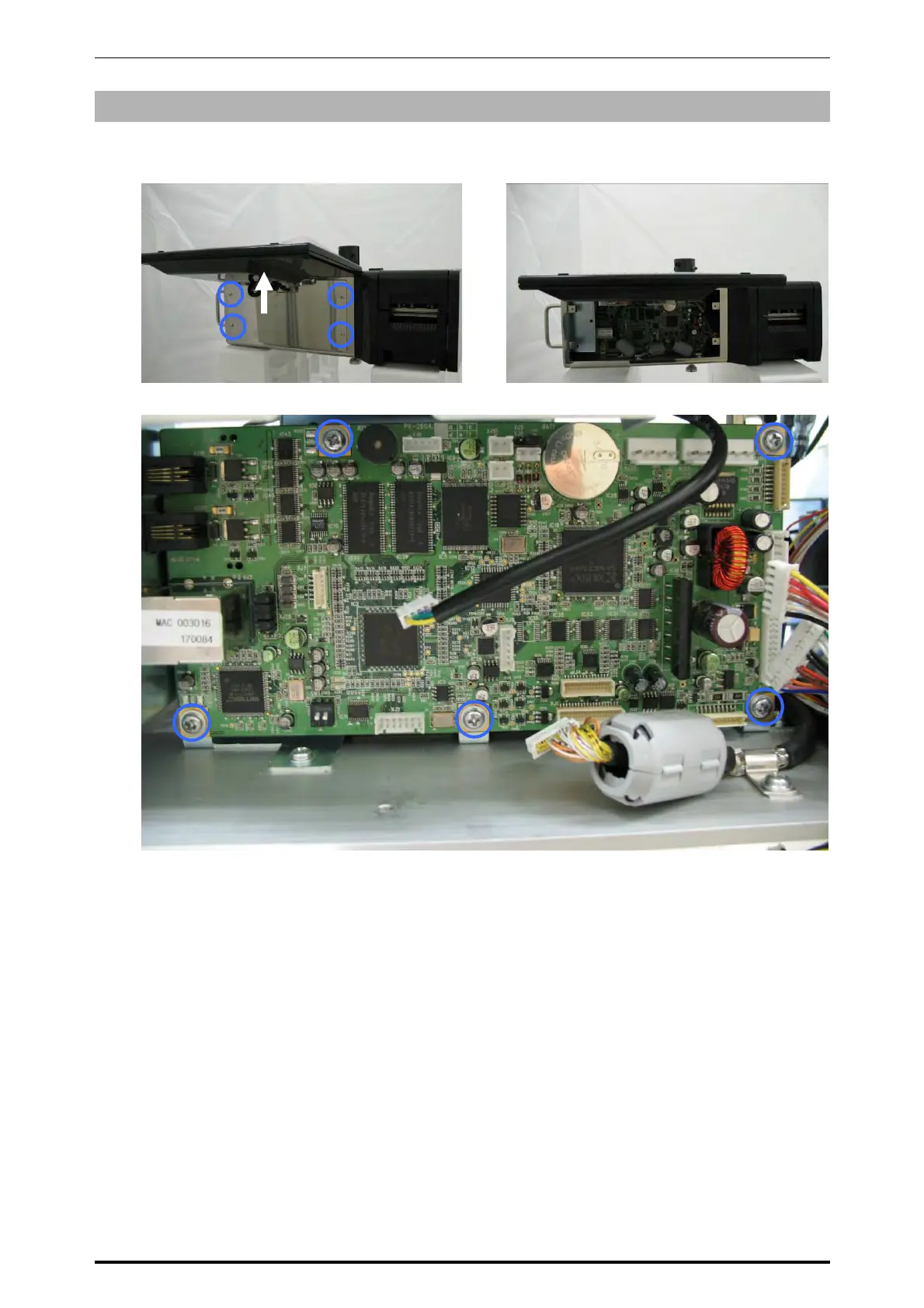

1.
Raise the operation panel and remove the
four fixing screws.
2.
Remove the front cover of the main unit.
3.
Unplug all harnesses connected with the main board and remove the five fixing screws.
Front cover
* Reverse this procedure for assembly.
