ISHIDA UNI-7 - Self-Service Type Assembly

Chapter 2 ASSEMBLY DRAWINGS

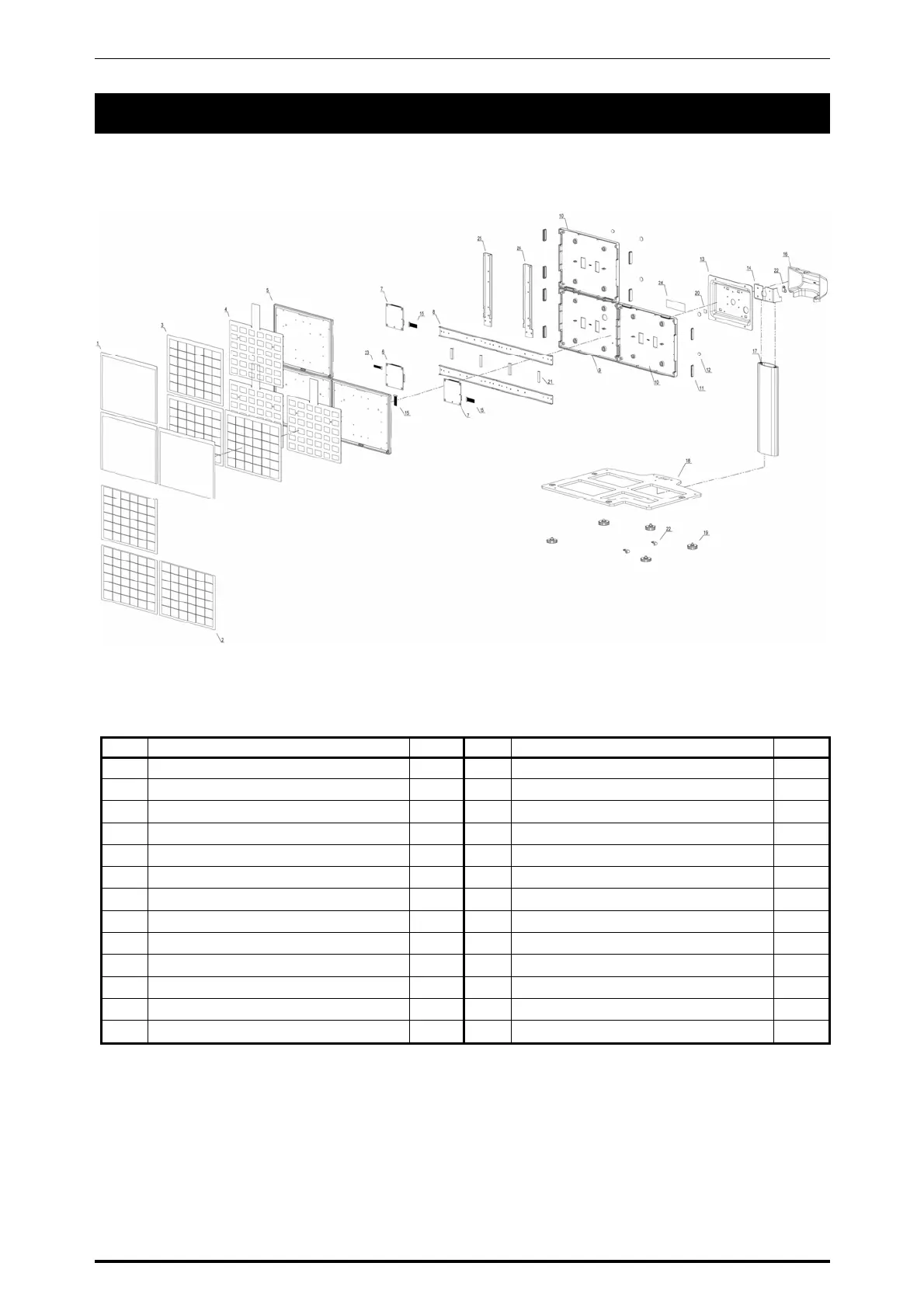

2.4 SELF-SERVICE TYPE
Parts List (Self-service Type)
NO. PART NAME
Q
'TY NO. PART NAME
Q
'TY
1 COVER KEYBOARD 3 14 BRACKET POLE STAND 1
2 SHEET KEYBOARD PLU 3 15 HARNESS S2 KEY 2
3 SHEET KEYBOARD SETTING 3 16 COVER JOINT 1
4 SHEET KEYBOARD MEMBRANE 3 17 POLE STAND 1
5 CASE FRONT KEY UNIT 3 18 BASE 1
6 PWB PK-266* 1 19 FOOT ADJUST 5
7 PWB PK-267* 2 20 BUMPON 1
8 FRAME KEY UNIT 2 21 VIBRATOR ASSEMBLY 6
9 CASE REAR KEY UNIT 1 22 CABLE CLAMP 3
10 CASE REAR KEY UNIT 2 23 HARNESS C2 SERIAL 1
11 CAP RECTANGLE 8 24 NAME PLATE SPEC 1
12 CAP 8 25 FRAME KEY UNIT-L 1
13 BRACKET KEY UNIT 1 26 FRAME KEY UNIT-R 1
UNI-7 Service Manual 2-7
