Chapter 5 MACHINE DISASSEMBLY

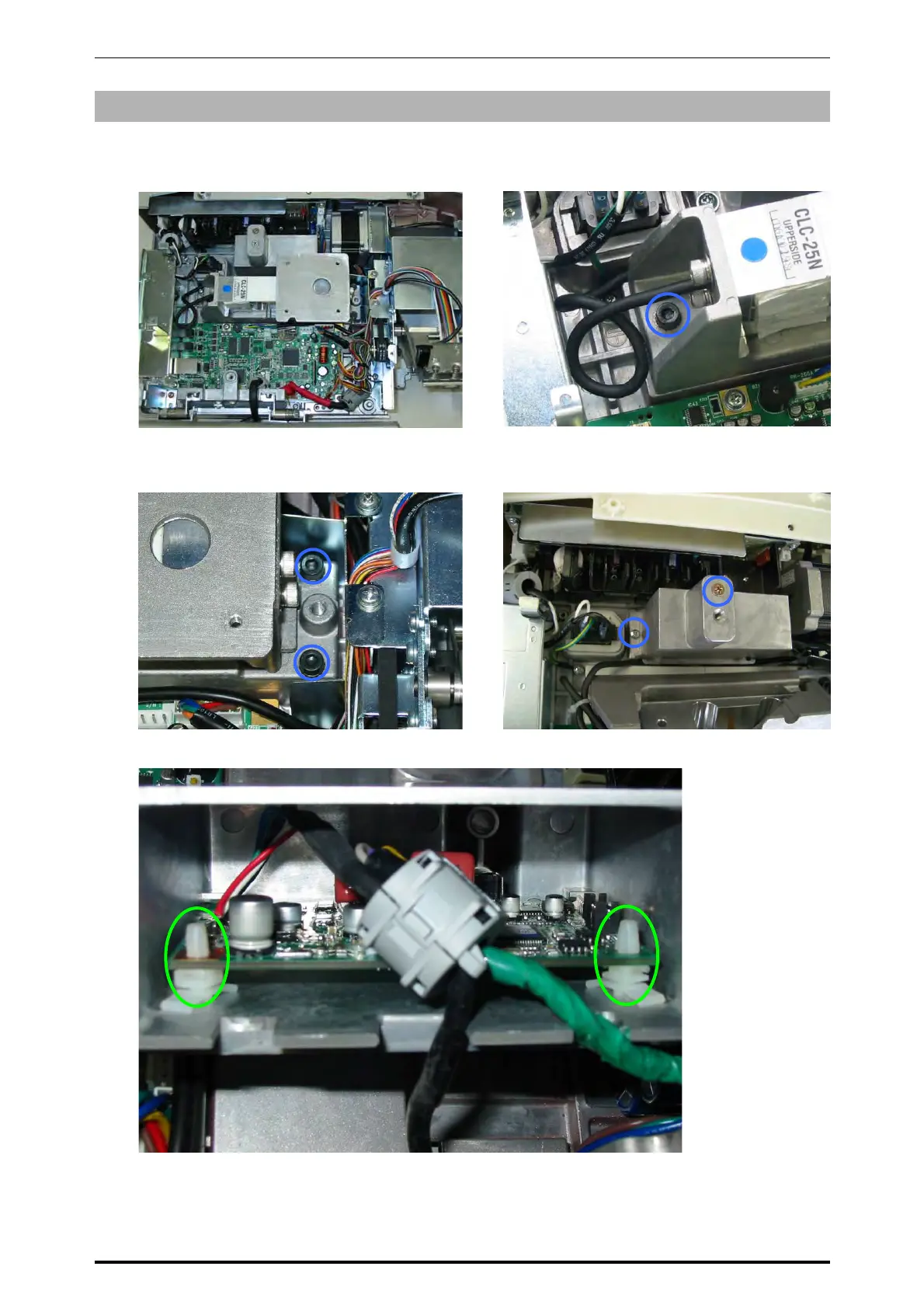

5.1.10 LOAD CELL & A/D BOARD
1.
This photo shows the inside of the machine.
2.
Remove the hexagon socket head bolt fixing
the load cell unit.
3.
Remove the two hexagon socket head
bolts at the other end and detach the load
cell unit.
4.
Remove the two screws to remove the
die-cast bracket.
5.
Unplug the harnesses and squeeze the two spacers (green) to detach the AD board.
5-10 UNI-7 Service Manual
