Chapter 6 MECHANICAL ADJUSTMENT
6
MECHANICAL ADJUSTMENT
6.1 FOUR CORNER LIMIT SPACE

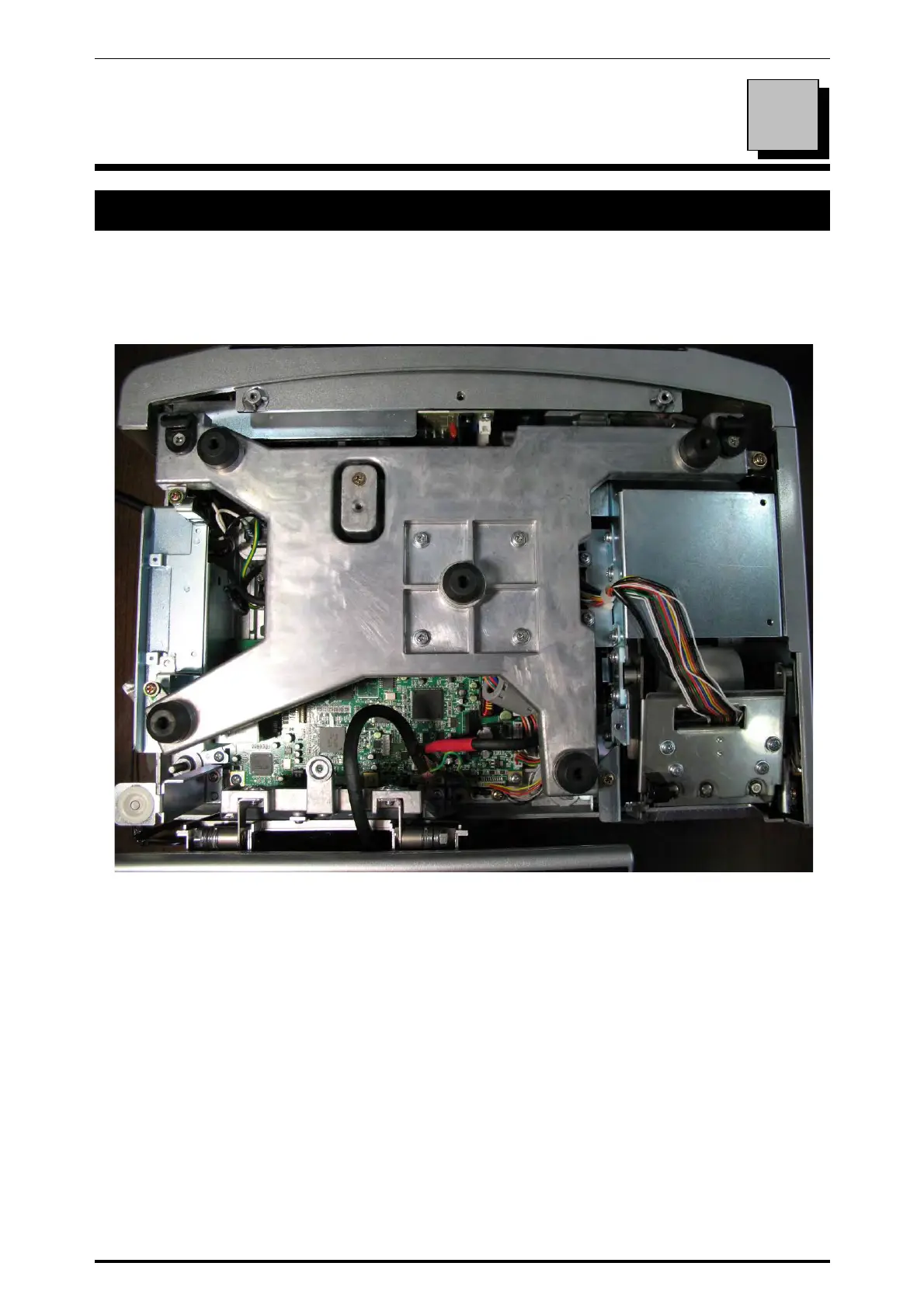

Adjust the limit spaces at four corners of the weigh platter holder to become the following values.
(1) 2mm, (2) 2mm, (3) 2.5mm, (4) 3.2mm
(4)
(1)
Wei
g
h
p
latter holde
r
(2)
(3)
UNI-7 Service Manual 6-1
