ISHIDA UNI-7 Service Manual

Chapter 5 MACHINE DISASSEMBLY

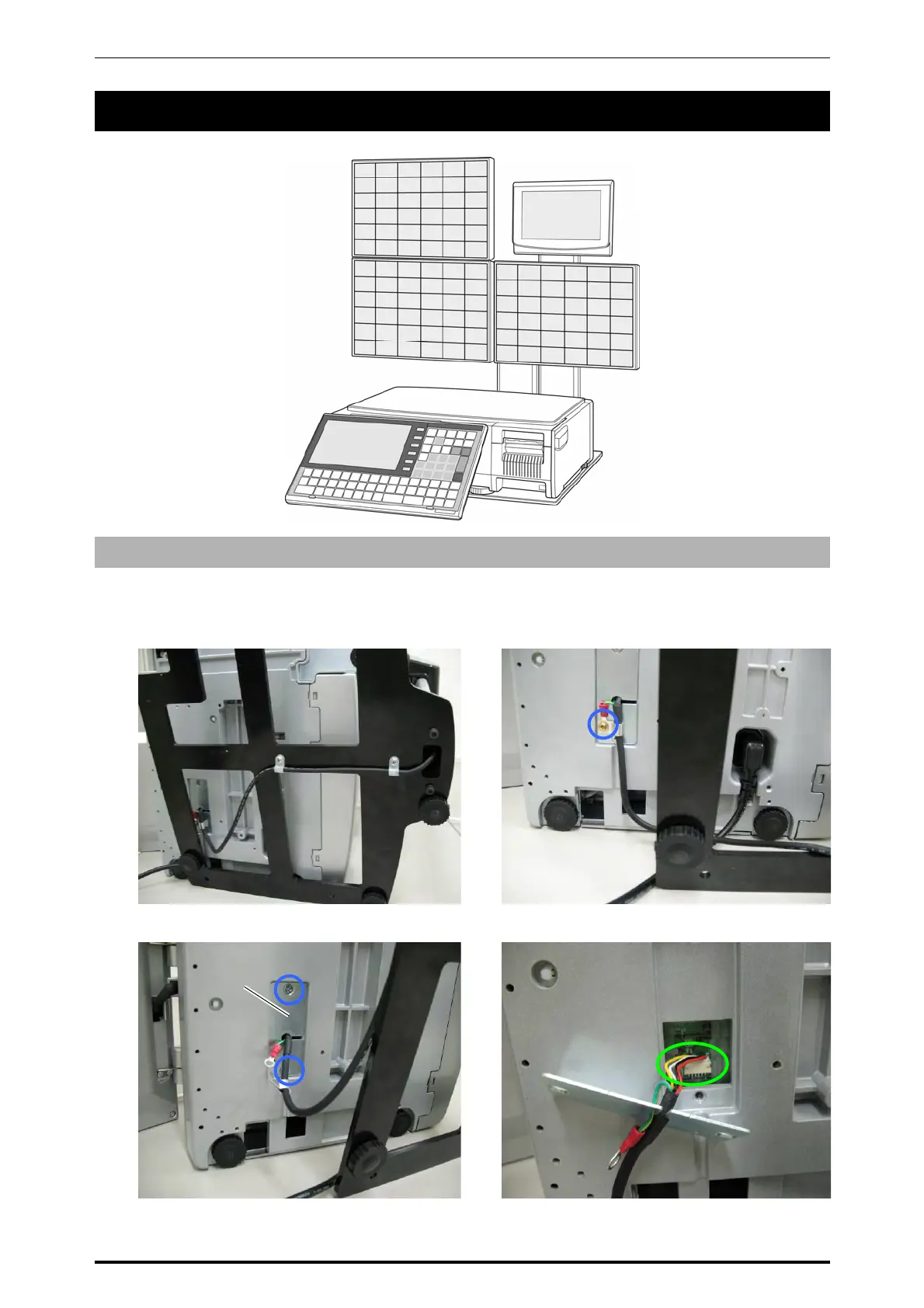

5.4 SELF-SERVICE TYPE
5.4.1 SELF-SERVICE PANEL UNIT
1.
Gently lay down the machine and
self-service panel unit so that you can work
from the bottom.
2.
Remove the screw fixing the cable clamp and
the grounding terminal.
3.
Remove the two screws fixing the blind
plate.
4.
Detach the blind plate and unplug the
connector.
Blind plate
UNI-7 Service Manual 5-19

ISHIDA UNI-7 Specifications

General

Use conditions	Temperature: -5 to 35°C Humidity: 30 to 85%, Non condensing.
Power supply:	AC100 – 240V, 50 / 60Hz
Power consumption	1.0A/0.5A
Weighing capacity Scale interval	15 kg: 0 to 6/0.002 kg, 6 to 15/0.005 kg 30 lb: 0 to 15/0.005 lb, 15 to 30/0.01 lb
Weighting accuracy	1/3000
Printing method	Direct thermal method
Printing speed	100mm/second, 120mm/second Note: The printing speed may vary according to label conditions.
Printing effective size	56mm
Label size	Label width: 30mm to 60mm Label length: 20mm to 150mm
Operator/Customer display	7.0 inch color liquid crystal with back light, 480 X 234dots
Thermal head	2 inches (448dots) and 8 dots/mm
Number of label cassettes	7 cassettes
Program store medium	Flash ROM (32M bytes)
Input/Output	LAN 1 channel USB 1 channel CF 1 channel Drawer 2 channels
