Chapter 5 MACHINE DISASSEMBLY
5.

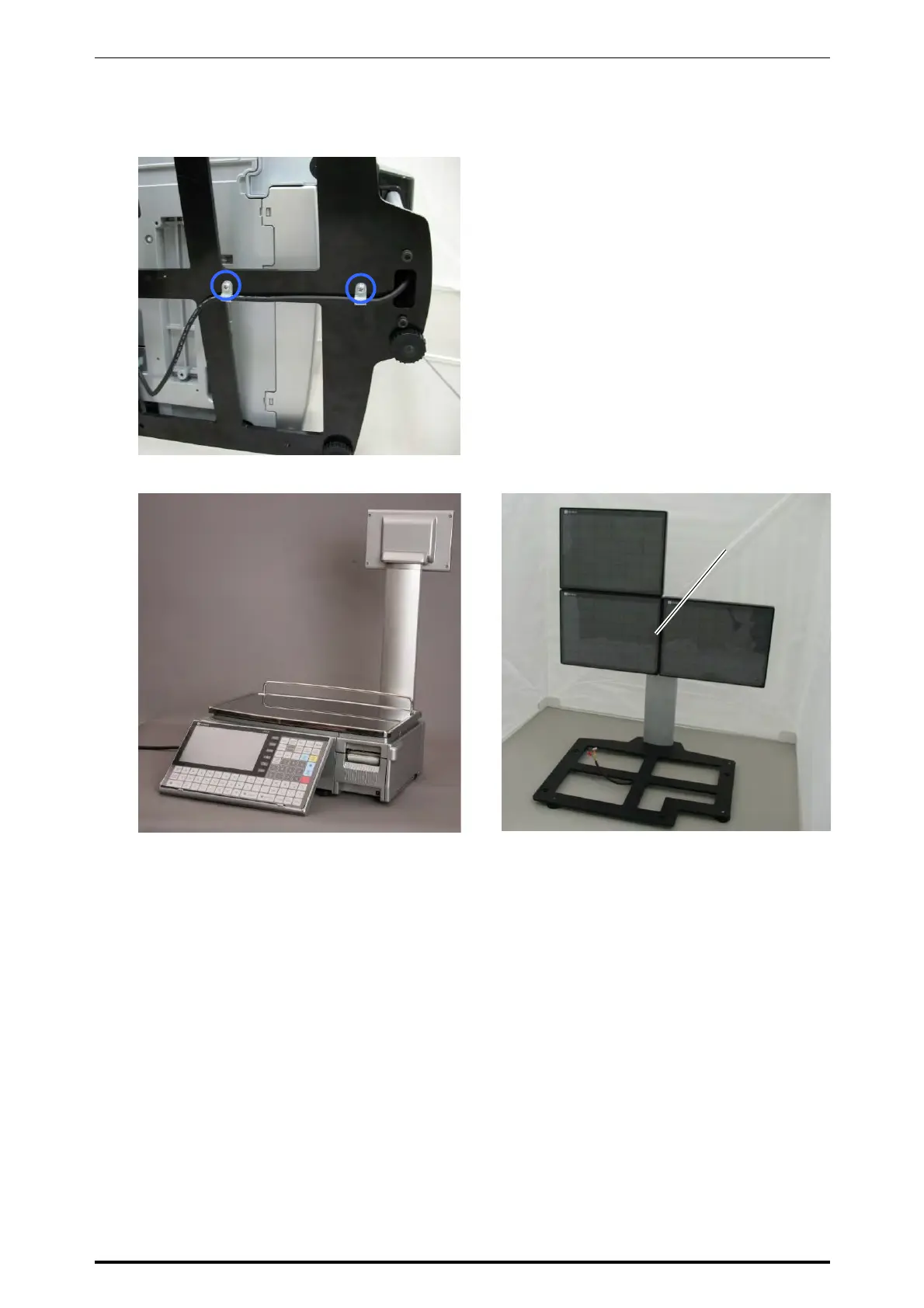

Remove the two screws fixing the cable
clamps.
6.
Separate the self-service panel unit from the machine.
Self-service panel unit
5-20 UNI-7 Service Manual
