ISHIDA UNI-7 - Panel Control Board

Chapter 5 MACHINE DISASSEMBLY

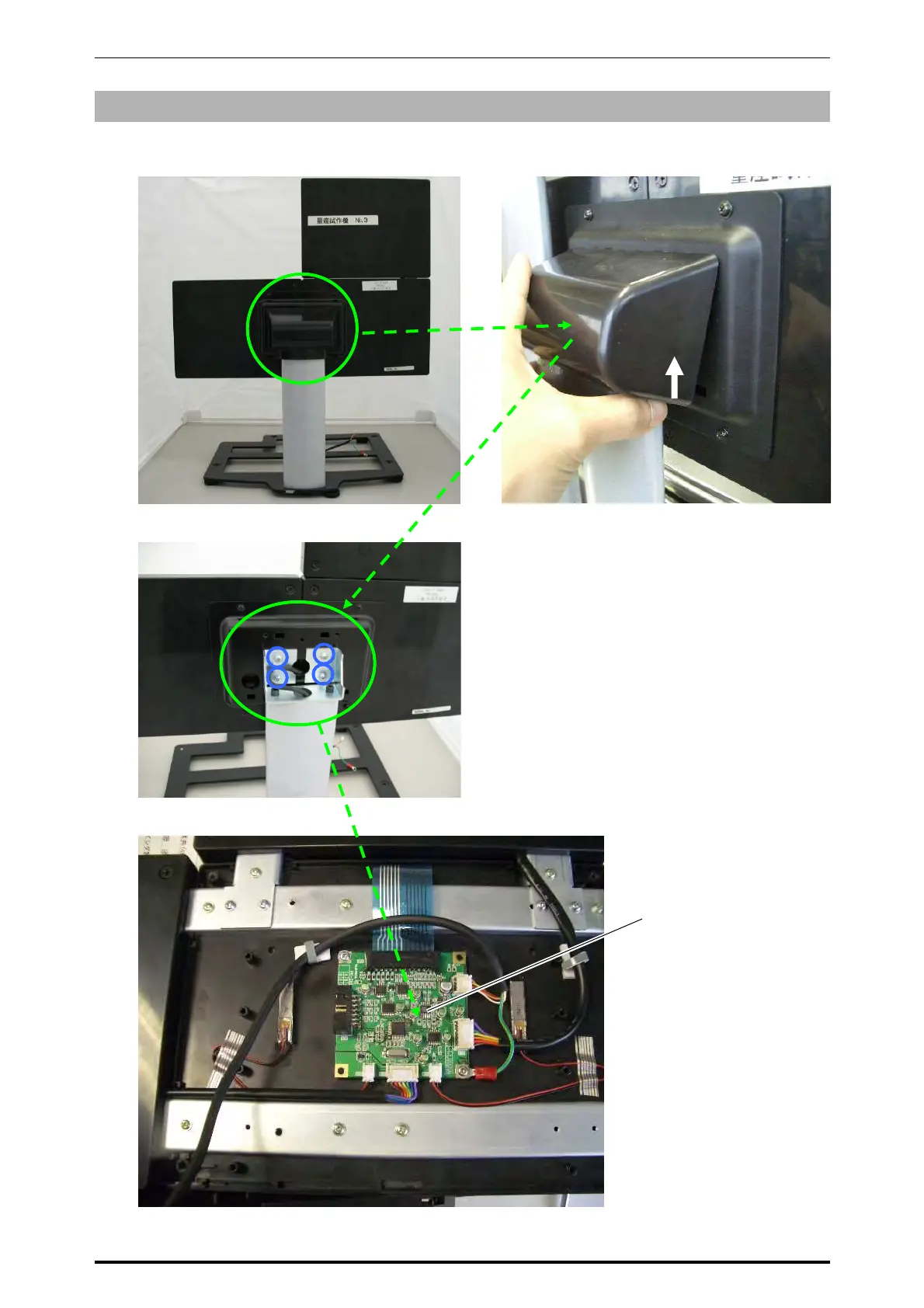

5.4.2 PANEL CONTROL BOARD
1.
Lift to disengage the two hooked places and detach the blind cover of the self-service panel unit..
2.
Remove the four screws to detach the rear
cover.
Rear cover
Panel control board
Blind cover
UNI-7 Service Manual 5-21
