ISHIDA UNI-7 Service Manual

Chapter 5 MACHINE DISASSEMBLY

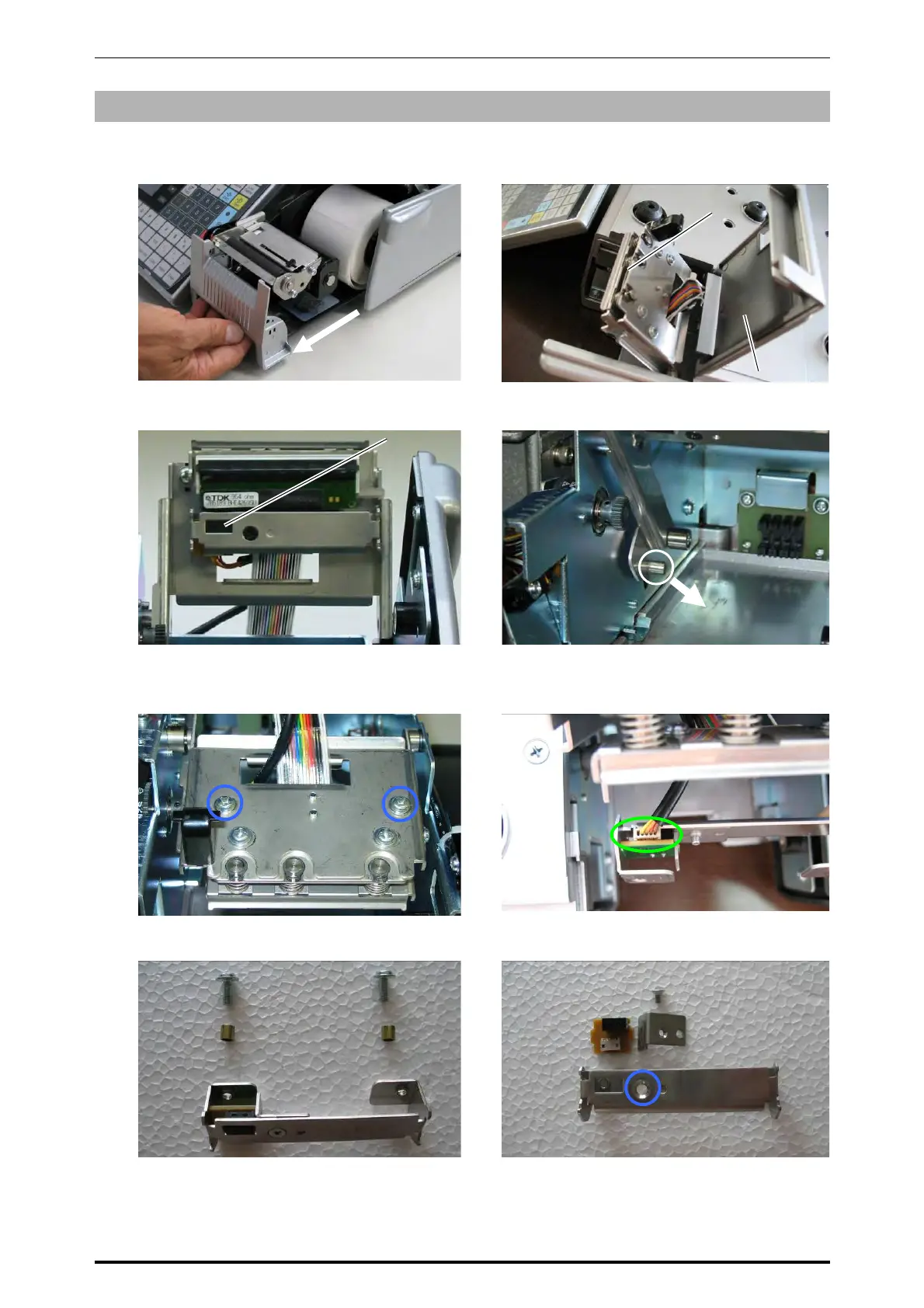

5.1.6 LABEL SENSOR
1.
Pull out the cassette unit from the main unit.
2.
Open the printer lid.
3.
This photo shows the location of the label
sensor receiver.
4.
Lower the thermal head unit by pushing down
the lever.
5.
Carefully remove the two screws fixing the
label sensor unit so as not to drop or lose the
inserted collars.
6.
Unplug the harness.
7.
This photo shows the breakdown of the
sensor unit.
8.
Remove the screw fixing the bracket.
Thermal head unit
Printer lid
Label sensor
(Receiver)
* Reverse this procedure for assembly.
UNI-7 Service Manual 5-7

ISHIDA UNI-7 Specifications

General

Use conditions	Temperature: -5 to 35°C Humidity: 30 to 85%, Non condensing.
Power supply:	AC100 – 240V, 50 / 60Hz
Power consumption	1.0A/0.5A
Weighing capacity Scale interval	15 kg: 0 to 6/0.002 kg, 6 to 15/0.005 kg 30 lb: 0 to 15/0.005 lb, 15 to 30/0.01 lb
Weighting accuracy	1/3000
Printing method	Direct thermal method
Printing speed	100mm/second, 120mm/second Note: The printing speed may vary according to label conditions.
Printing effective size	56mm
Label size	Label width: 30mm to 60mm Label length: 20mm to 150mm
Operator/Customer display	7.0 inch color liquid crystal with back light, 480 X 234dots
Thermal head	2 inches (448dots) and 8 dots/mm
Number of label cassettes	7 cassettes
Program store medium	Flash ROM (32M bytes)
Input/Output	LAN 1 channel USB 1 channel CF 1 channel Drawer 2 channels
