ISHIDA UNI-7 - Motor Unit

Chapter 5 MACHINE DISASSEMBLY
5.1.12 MOTOR UNIT

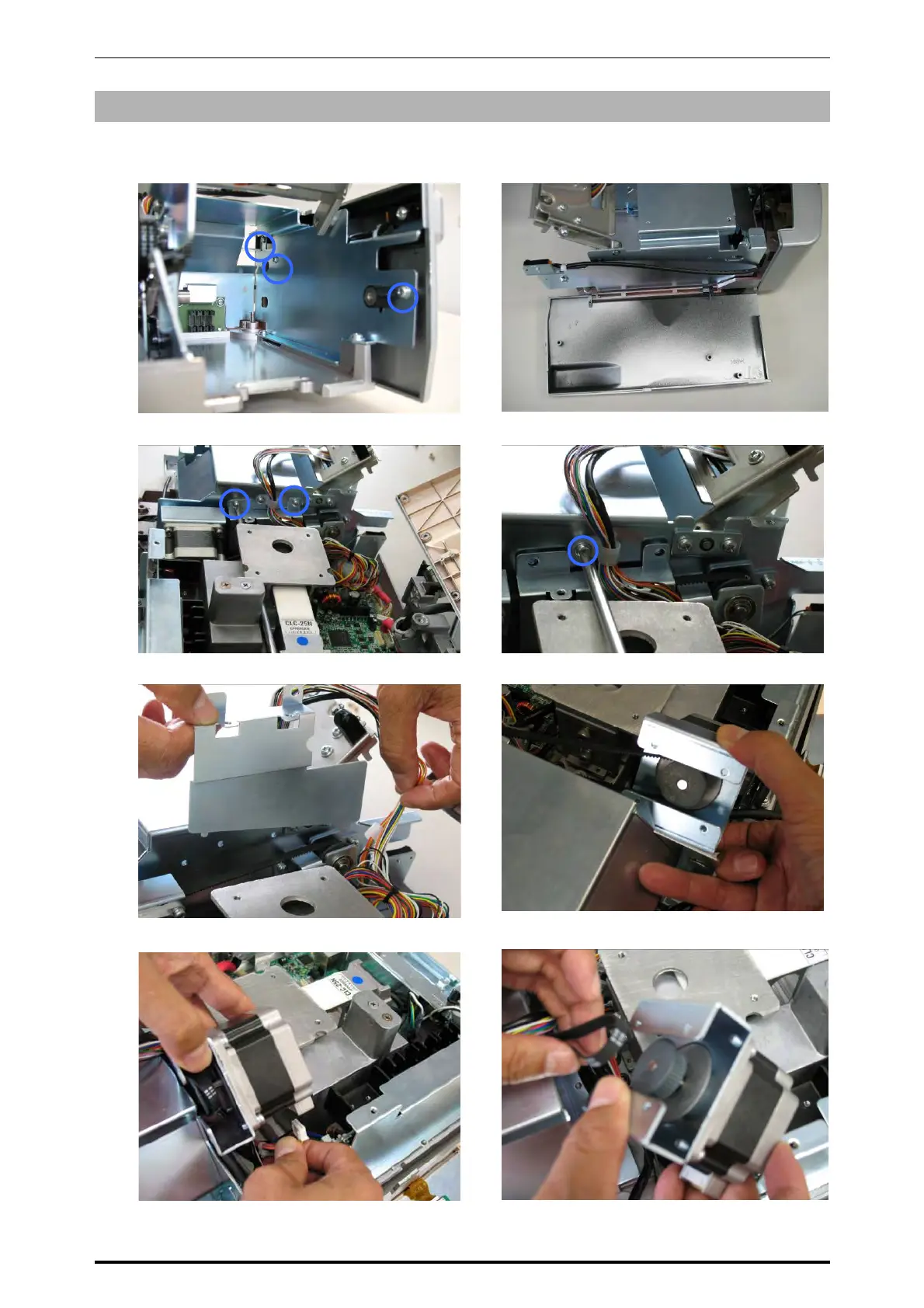

1.
Remove the three screws fixing the side
cover.
2.
Detach the side cover.
3.
Remove the two screws fixing the plate.
4.
Remove the screw fixing the cable fastener.
5.
Remove the plate.
6.
Remove the motor.
7.
Unplug the connector.
8.
Remove the timing belt from the pulley.
5-12 UNI-7 Service Manual
