Chapter 6 MECHANICAL ADJUSTMENT
6.2 CASSETTE MAGNET POSITION
1.

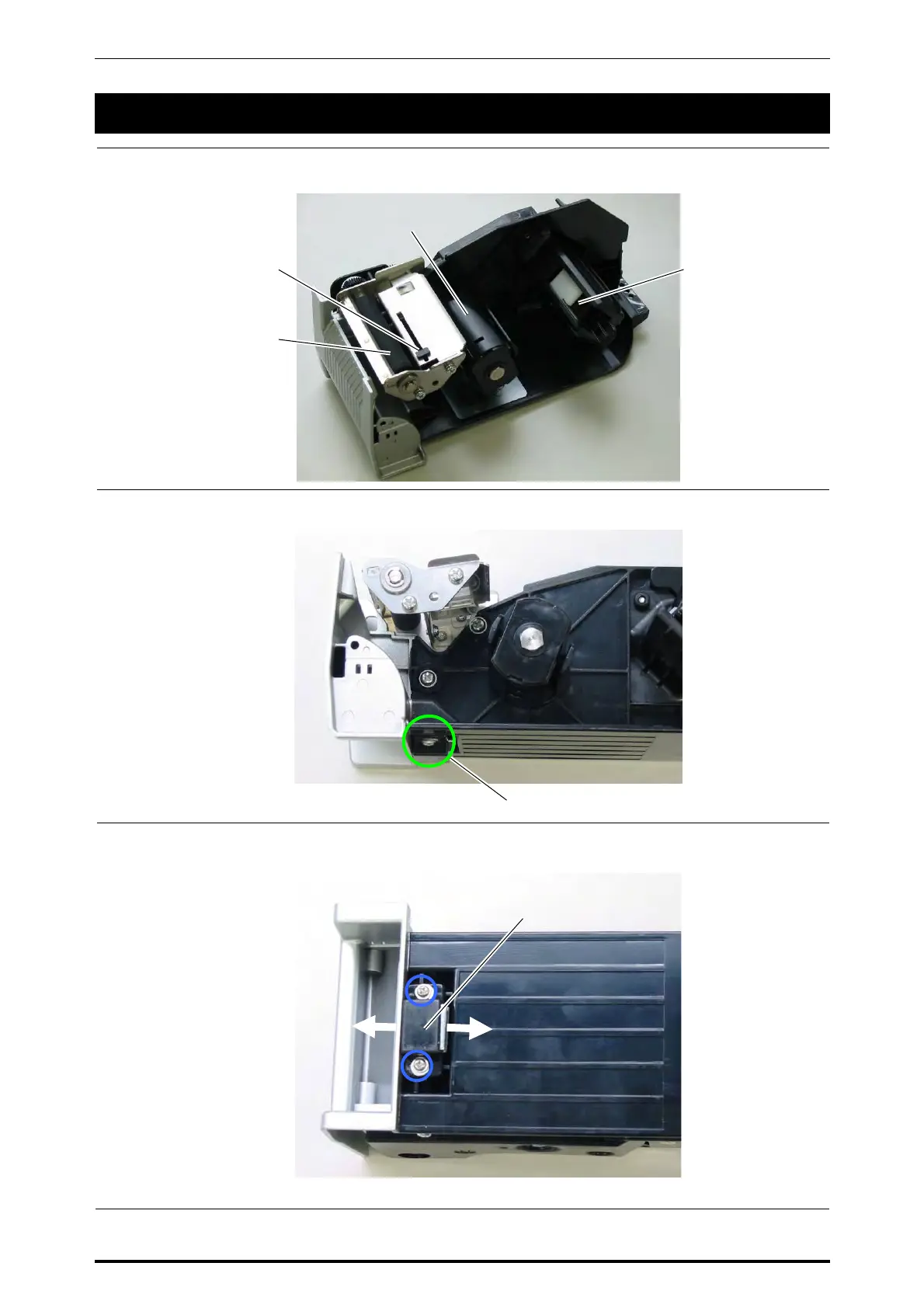

The following photo shows the name of each unit of the cassette unit..
2.
Turn the cassette unit upside down.
3.
Loosen the two screws and move the magnet back and forth for adjustment. Be sure to tighten
the screws after adjustment. Check that the cassette unit is securely fixed by the magnet.
Label guide
Winding bobbin
Print rolle
Roll holder
Magnet
Bottom of cassette
Magnet
6-2 UNI-7 Service Manual
